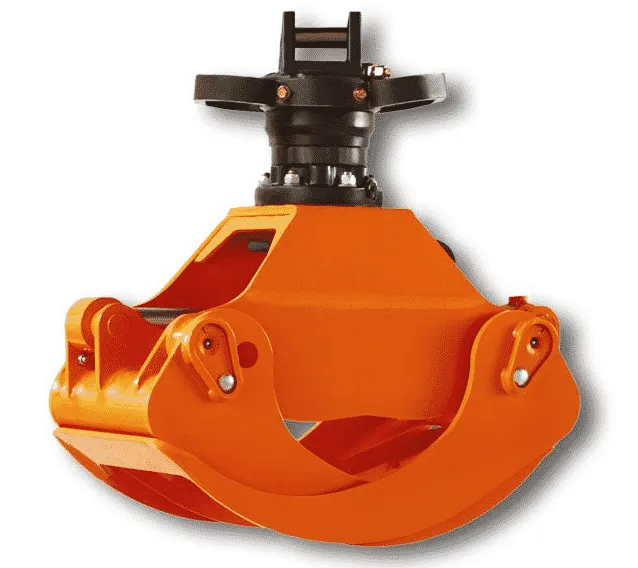

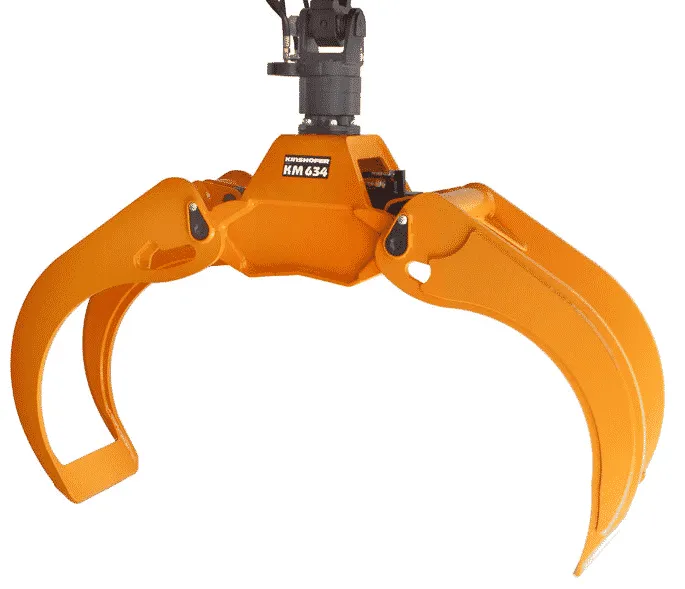

Product Description: Kinshofer KM 634 -0.25 Logging Grapple Kit
The KM 634 -0.25 is a robust and powerful tool for logs – especially for heavy duty operation. Well suited for handling single trunks.
Low height with one horizontal hydraulic cylinder – especially when closed due to the interlocking arms.
Long service life is ensured by the sturdy construction, high quality components and generously dimensioned bearing system. All bearing bolts are case hardened and housed in steel bearing bushes.
Optimised design allows extremely small grapple diameter – ideal for handling thin timber securely. The arms open almost vertically. That enables an easy penetration into the timber stack
Synchronisation of arms due to sturdy compensation rods.lProtection of the hoses for the hydraulic connections by a hose guard on theKINSHOFER rotator.

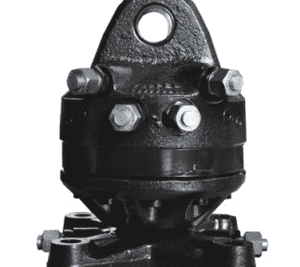

Precise positioning of the loads is no problem in combination with the KINSHOFER rotator – continuous rotation, precise start and stop ability.
Safety is assured in the event of an unexpected pressure drop due to the integratednon-return valve.
The reinforced logging grapple KM 634S has an even more sturdy constructionand is equipped with a stronger rotator.
Efficient handling with high closing forces (13 to 16 kN at an operating pressure of 24 MPa).Logging Grappl
