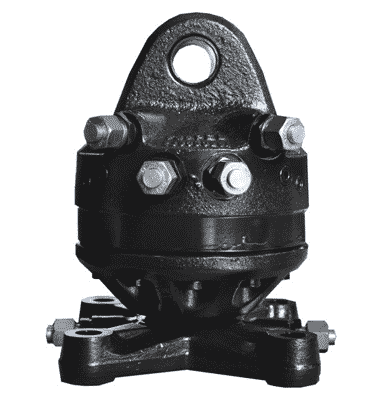

KM04F Gear Type Rotator with Flange up to 4500 kg
KM04F Gear Type Rotator with Flange up to 4500 kg Load Capacity
KINSHOFER manufactures rotators for truck loaders, excavators and logging Operations.
Years of experience in designing rotators and hydraulic load handling equipment guarantee high efficiency, long lasting rotators, specially tailored to meet your requirements.
The gear-type design ensures a very compact and powerful rotator. The precision control and braking ability is especially appreciated by operators. A grapple does not rotate unexpectedly when digging, even under maximum load, and there is no need for stability compensation when handling longer lengths of timber…
These are only some of the many working situations where operators appreciate the advantages of using
KINSHOFER rotators.
Type: KM 04 F
Load capacity:4500kg
Hole pattern of flange B: 140mm
Upper connection (Width C x Pin-Ø A): 84 x 30mm
Torque:850Nm
Moment of deflection max: 3000 Nm
Self weight: 26Kg
Operating pressure: 32 MPa (320 bar)
Pump capacity: 25 to 60 l/min
Hydraulic couplings: M 18 x 1,5
Drawing – KM04F/KM04S
