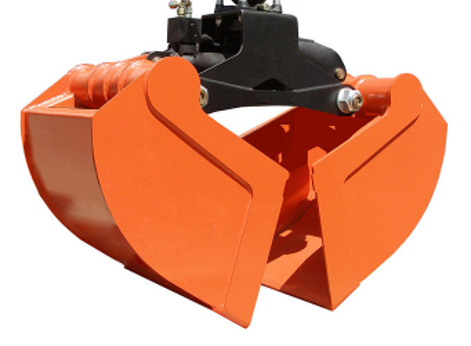

Kinshofer KM622 500ltr Clamshell Grab Bucket Only

Product Description: Kinshofer KM622 500ltr Clamshell Grab Bucket Only

Kinshofer KM622 500ltr Clamshell Bucket only

The high volume clamshell bucket KM 622 has a significant narrow frame and can therefore fulfil small digging tasks besides the handling.

**** PLEASE NOTE LINK FOR M SERIES EPSILON CRANES ARE EXTRA, ASK FOR DETAILS. ****

Suitable for digging due to the narrow frame. Compact design due to the narrow frame enables manual filling of the bucket without obstacles.
Practically no „left overs“ of the material to be picked up as the working edges are vertical when the buckets are open and allow a deep plunge into a pile of material.
High stability through reinforced buckets, torsion-free frame, generously dimensioned bearing system and the use of 500 HB steel in the manufacture of cutting edges.
Combination of compensator mechanism and cylinder guard has many advantages: parallel action, longer life for piston rod and seals, significant weight savings.
Efficient handling with high closing forces (20 kN at an operating pressure of 26 MPa).

• Volume:500ltr
• Width B:1000mm
• Max. Opening:1670mm
• Number of teeth (optional):9
• Self weight:415kg
• Closing force:20kN
• Load capacity3000kg
