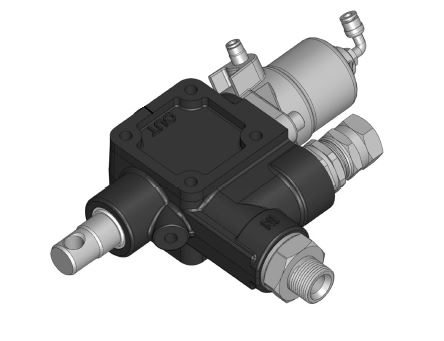

Name: Binotto 188 MOD. 150 3/4" V.DIR T.190 BAR TIPPING VALVE (SIDE PORTS)
SKU: 12192301499BI
Price: 478.38 GBP
Availability: InStock

Binotto 188 MOD. 150 3/4″ V.DIR T.190 BAR TIPPING VALVE (SIDE PORTS)

Inc VATExcl VAT Inc VATExcl VAT

Excl. VAT

Incl. VAT

You Save: 12%

Binotto 188 MOD. 150 3/4″ V.DIR T.190 BAR TIPPING VALVE (SIDE PORTS)

Product Description: Binotto 188 MOD. 150 3/4″ V.DIR T.190 BAR TIPPING VALVE (SIDE PORTS)

Binotto 188 MOD. 150 3/4″ V.DIR T.190 BAR TIPPING VALVE (SIDE PORTS)

Functioning Pneumatic

Body material Spheroidal cast iron

Flow [L/min] 150

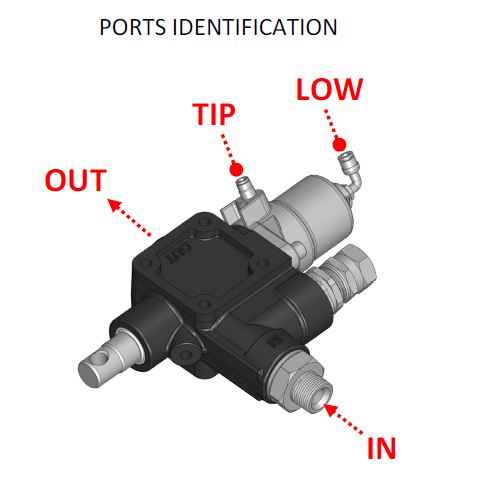

IN port 3/4” BSP

OUT port 3/4” BSP

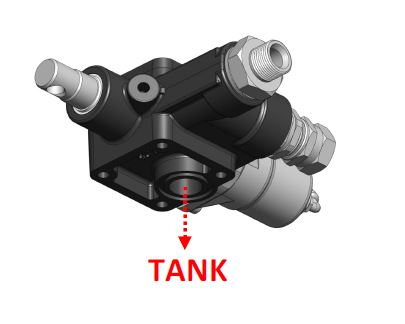

Return tank “T” 3/4” BSP

Weight [Kg] 6,0

Pressure setting [bar] 190

Relief valve type Direct

Pneumatic connections [mm] Ø6×4

To Suit:

Binotto 188 Gear
