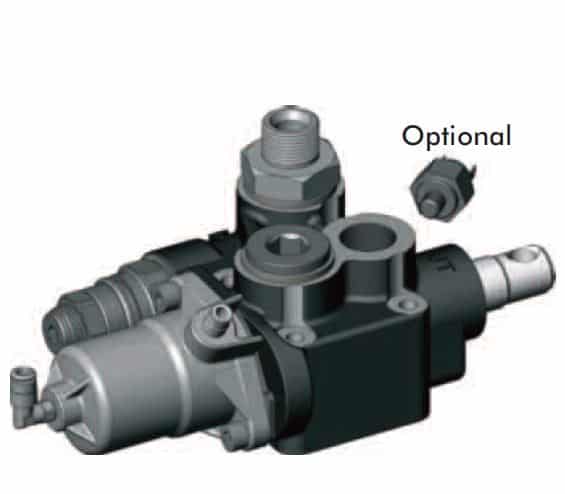

Binotto TFC Pneumatic Tipping Valve 150/190 Bar

Product Description: Binotto TFC Pneumatic Tipping Valve 150/190 Bar

Binotto Pneumatic Proportional Tipping Valve Modular 150/190 Bar, TFC Gear
Air operated proportional tipping valves for medium-light, medium-heavy and heavy applications

Proportional pneumatic tipping valve to suit medium-heavy duty tipper trucks. Operated by proportional cab control. Open center hydraulic scheme according to CE standards.
– Built-in check and adjustable safety valves (differential cartridge type).
– Nodular cast-iron body for pressure up to 400 bar.
– Either Chassis or tank (DSP kit) mounting options.
– Mechanical Direct End-of-stroke.
– Ready for pressure signal switch mounting.
– Cataphoresis coated body and nickel spool.
– Compact size thanks to front ports.
– Guaranteed for oil temperature range -25÷80 °C, viscosity range 12÷100 cSt and oil filtering 25 μm.

To Suit:

• Binotto TFC Gear

Mod 150. 190 bar 12192301515
