Product Description: TS Standard HVDS (High Voltage Detection System) MK2 12/24v
HVDS Mk2: Advanced High Voltage Overhead Cable Detection System
The HVDS High Voltage Cable Detector Mk2 represents the latest advancement in our highly successful High Voltage Detection System series. A proven safety device for the prevention vehicles and machinery coming into contact with high voltage overhead power lines. of By building on the proven technology of our TSafe system, the HVDS Mk2 incorporates cutting-edge high voltage detection technology to offer improved sensitivity, greater interference rejection, a wide input voltage range, and an extended sensitivity range setting.
Key Features:
- Enhanced Sensitivity: The HVDS High Voltage Cable Detector boasts significantly improved sensitivity, thereby enabling it to detect high voltage overhead power lines from distances of up to 100 meters away. Consequently, this promptly alerts operators to potential dangers, thereby enhancing safety on the worksite.
- Interference Rejection: With advanced interference rejection capabilities, the HVDS Mk2 minimizes false alarms, thus providing reliable and accurate detection even in environments with electrical noise.
- Wide Input Voltage Range: The system operates on a wide input voltage range of 11-32V DC, making it compatible with a variety of vehicles and machinery.
- Signal Strength Meter: Similar to our TSafe system, the HVDS Mk2 features a signal strength meter that gives the operator an indication of proximity to a detected overhead power line. This subsequently helps operators gauge the distance and take appropriate precautions.

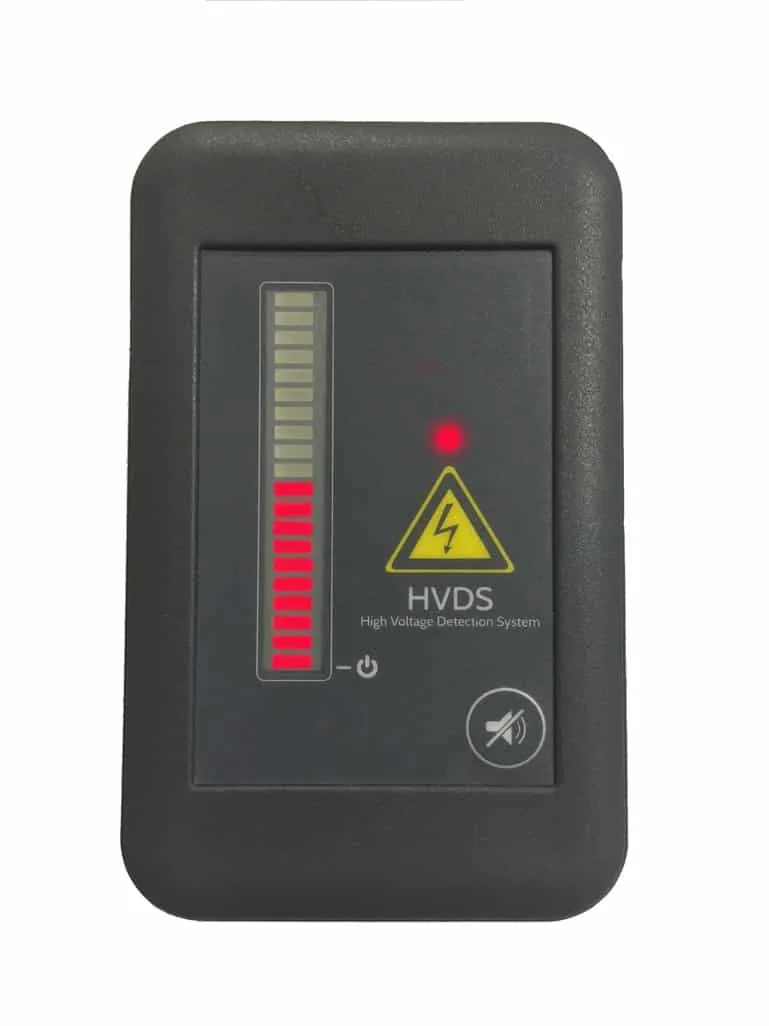

- Audio/Visual Warning Unit: The system includes an in-cab audio/visual warning unit that alerts the operator of the presence of overhead power lines. The warning unit features high-intensity red flashing LEDs and a pulsed sounder, ensuring that the operator is alerted to hazards.
- Easy Installation: The HVDS Mk2 is designed for easy installation, with a cab-mounted detection antenna and a straightforward setup process. Consequently, it can be easily fitted to tipper vehicles, excavators, telehandlers, cranes, platforms, JCBs, and more.
- Versatility: The system is suitable for use on almost any type of vehicle or machinery. You can protect any vehicle with variable height, making it a versatile solution for a wide range of applications.
- Plug & Play: We designed the HVDS Mk2 for plug-and-play operation. This eliminates the need for user calibration and consequently simplifies the installation process.
- Auto Resetting Mute Feature: You can mute the system once activated, and it will emit a reminder tone every 5 seconds. This is to ensure that the operator does not forget about the detected power line.
- Proven Technology: With thousands of units sold worldwide, the HVDS is a trusted and reliable solution for high voltage detection.
Sensitive – Detects the presence of overhead high voltage power lines up to 100m
Easy to use – Audio visual in cab warning
Versatile – Can be used on almost any type of vehicle
Applications:
The HVDS Mk2 is ideal for all vehicles, including:
- Plant and machinery with variable height
- Tipper vehicles
- Excavators
- Telehandlers
- Cranes
- Platforms and MEWPs
- JCBs
Its advanced detection capabilities and user-friendly features make it an essential tool for ensuring safety in high-risk environments. Furthermore, portable and externally mounted waterproof versions of the HVDS are also available.
The HVDS Mk2 is a state-of-the-art high voltage detection system. It provides enhanced sensitivity, greater interference rejection, and a wide input voltage range. The signal strength meter, audio/visual warning unit, and easy installation make it a reliable and efficient solution for preventing accidents involving high voltage overhead power lines. With its proven technology and versatility, the HVDS Mk2 is the ultimate choice for enhancing safety and efficiency in various industrial applications.
