TS Artic Inclinometer with 10 Way Suzi

Product Description: TS Artic Inclinometer with 10 Way Suzi

TS Artic Inclinometer with 10 Way Suzi

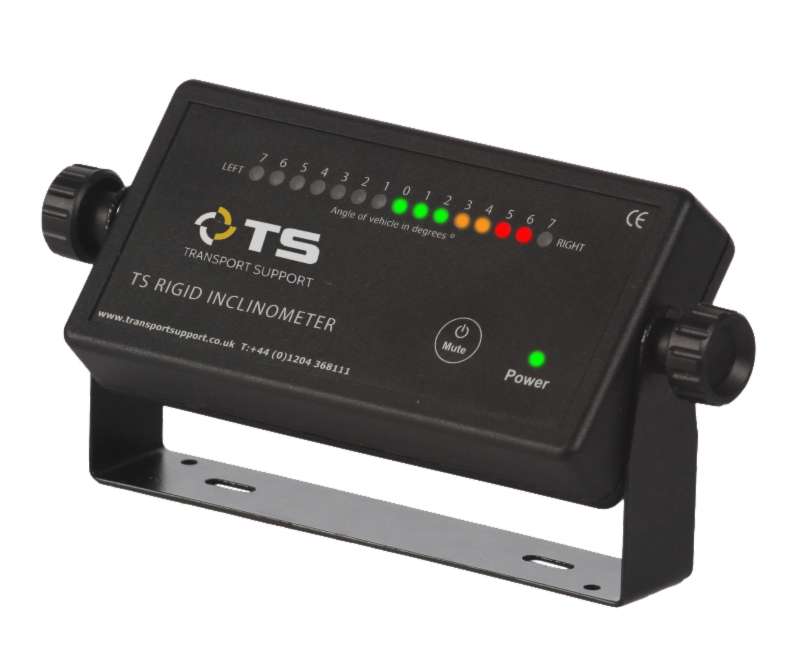

The TS Rigid Inclinometer has been specially designed to meet the needs of rigid tipper vehicle operators by displaying the angle of the vehicle using a series of 15 ultra-bright LEDs (seven left, one indicating zero, and seven right).

The LEDs are arranged in various colours to represent the increase in vehicle angle: 0–2 are green; 3–4 are amber; and 5–7 are red. The TS Rigid Inclinometer control unit, which measures just 130mm x 65mm x 25mm and can be easily installed in any cab, operates off 12–24V supply and features a mute facility, three variable maximum-angle settings, and a self-test.

Offering a cost-effective solution for six- and eight-wheel tippers, the system comprises an in-cab display unit, pneumatic valve, IP68 talking warning sounder (85dB), IP68 sensor cover complete with 3D sensor, and a protective ABS cover.

Specifications

Operating Voltage: 12-24V DC
Nominal Operating Current: 400mA
Size: W 130mm x H 65mm x D 25mm
Weight: 155g
Nominal Operating Temperature: -5°C to +55 °C
Measurement Range: +/- 7°
Warning Tone: High pitch pulsed buzzer approx. 85db
Visual Warning: High Intensity coloured LED’s
Power Indicator: High Intensity green LED
Mute Facility: System can be muted once activated
Sensor Resolution: +/-0.1°
Tipper Cut Off Valve (optional)
Operating Voltage: 12 or 24V DC
Nominal Operating Current: 170mA
Operating Pressure: 0-125 psi
Operating Temperature: 0°C to +50 °C
Voice Warning Sounder (optional)
Operating Voltage: 12-24V DC
Nominal Operating Current: 500mA
Sound Level: 85db
Frequency: Speech
M.I.R.A. tested for on and off highway (sounder only)
Protection Ratings
External Electronic Connections: IP68
Sensor Casing: ABS IP68
Sensor Shield: Water/Impact resistant

Please allow 5 – 10 working Days from receipt of order.
