UDS: Frontscan sensor System, 12-24v

Product Description: UDS: Frontscan sensor System, 12-24v

UDS: Frontscan sensor System, 12-24v, • 4 sensor system,  12-24 Volts  2.1m/1.0m detection range – outer sensors can be reduced to 0.6m (selectable via dip switches),  Audible distance warning, Flush-mount  • 2 year warranty

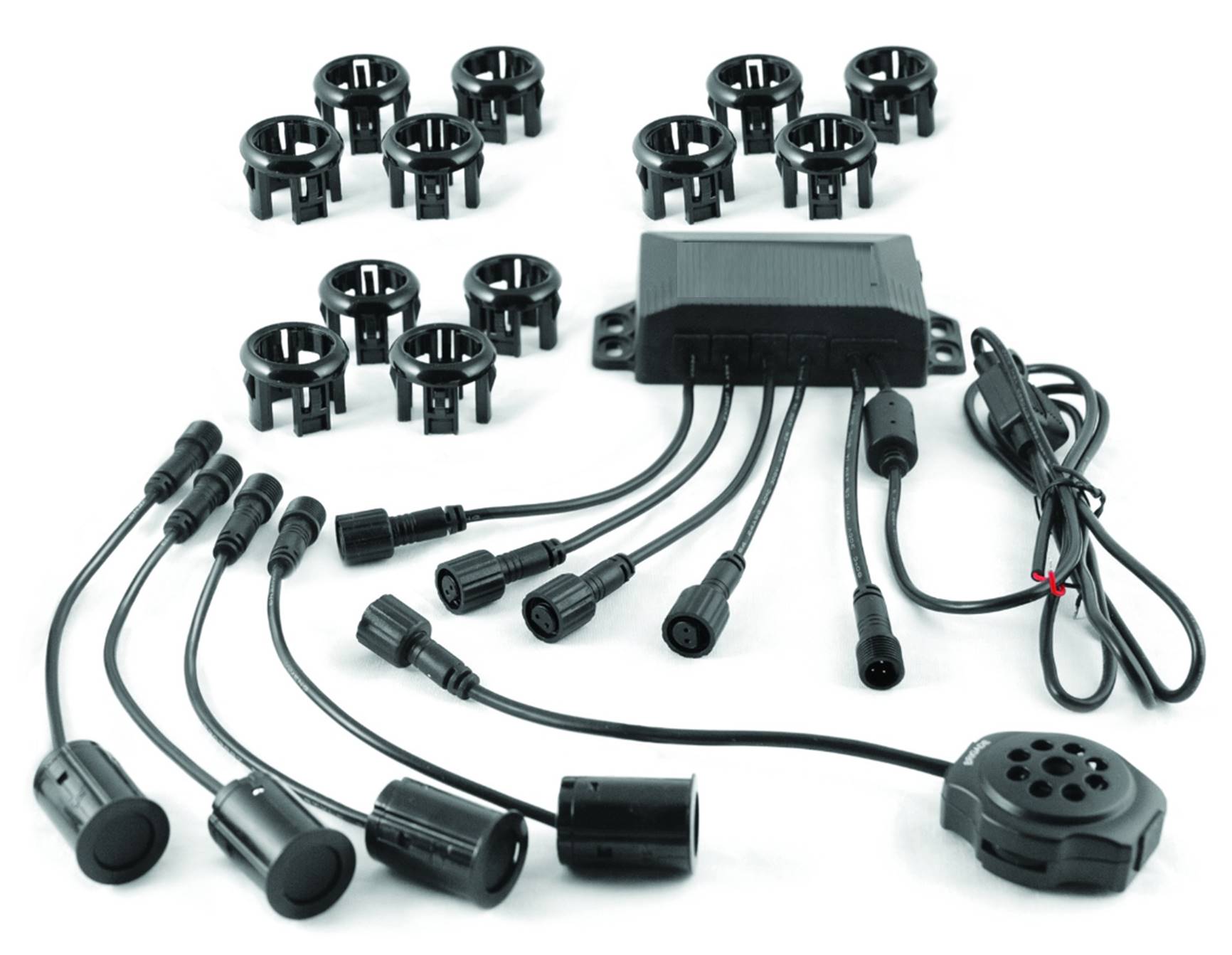

Contents
• 4 x sensors
• Buzzer
• 4 x 11° flush mount fixings
• 4 x 18° flush mount fixings
• 4 x 26° flush mount fixings
• Waterproof control box
• 2.5m buzzer cable
• 4 x 2.5m sensor cables

Features
• Obstacles detected in under 200 milliseconds
• Environment Learning Mode prevents false alarms from tow-hooks and other ancillary
equipment that intrudes in the first 100cm of the detection zone
• Self-diagnostic function

Durability & Standards
• Operating temperature: -40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to IP69K
• CE marked
• EMC approved: E
