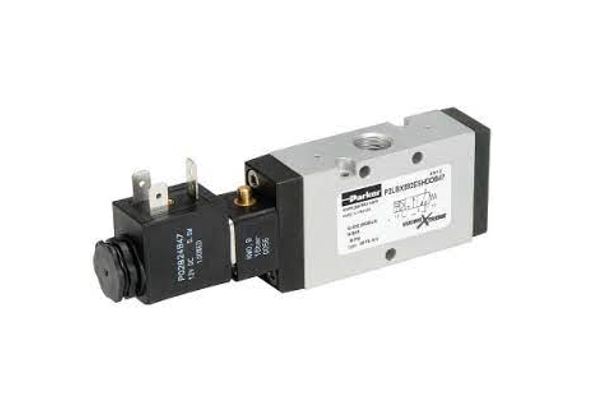

Parker Viking Lite Directional control valves

Product Description: Parker Viking Lite Directional control valves

Parker Viking Lite Directional control valves.

SKU: P2LCZ313ESNDCB49

The Viking Lite valve range is robust, versatile and combines high performance with compact installation dimensions. The choice of G1/8, G1/4 or G3/8 port sizes provide large flow capacity, short change-over times for maximum productivity and the low change-over pressure is an important characteristic of this valve range. Designed to operate with pressures up to 10 bar in temperatures -10O C to + 50O C.

Wear compensating system Viking Lite valves are fitted with dynamic bi-directional spool seals suitable for pressures up to 10 bar, in ambient temperatures -10O C to + 50O C. Under pressure radial expansion of the seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction gives lower pilot pressures, providing fast response and less wear. Valves do not require lubrication in operation but they can also be installed in systems that are lubricated.

• G3/8  3/2
• SOL- SPR
• 24V
• Max Pressure= 10bar / 145PSI
• Max Temperature = 10-+50°C

viking lite PDF
