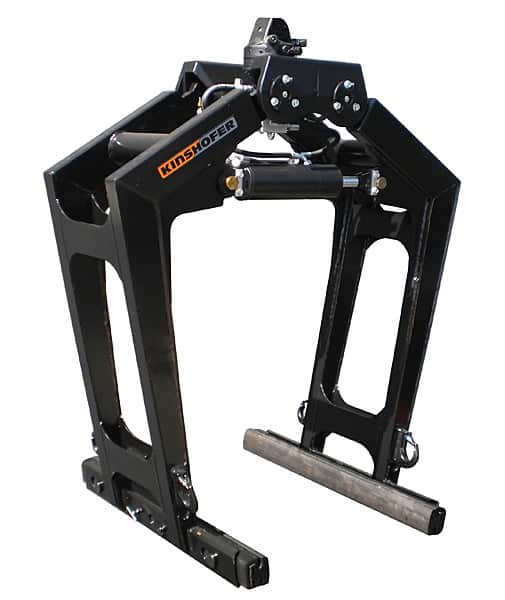

Kinshofer KM 331 Package 1100mm Brick Stack Grapple Scissor Grab

Product Description: Kinshofer KM 331 Package 1100mm Brick Stack Grapple Scissor Grab

Kinshofer KM 331 Package 1100mm Brick Stack Grapple Scissor Grab ( Plunge depth 1100mm / Load Capacity 2000kg)

Features:

• The robust brick stack grapple KM 331 handles loads up to 2000 kg.
• Fixed plunge depth with pivot clamping arms – hydraulically operated.
• Versatile tool with opening range of 160mm to 1450 mm i.e. for handling of single concrete products like curbstones, or handling of palletized brick packs.

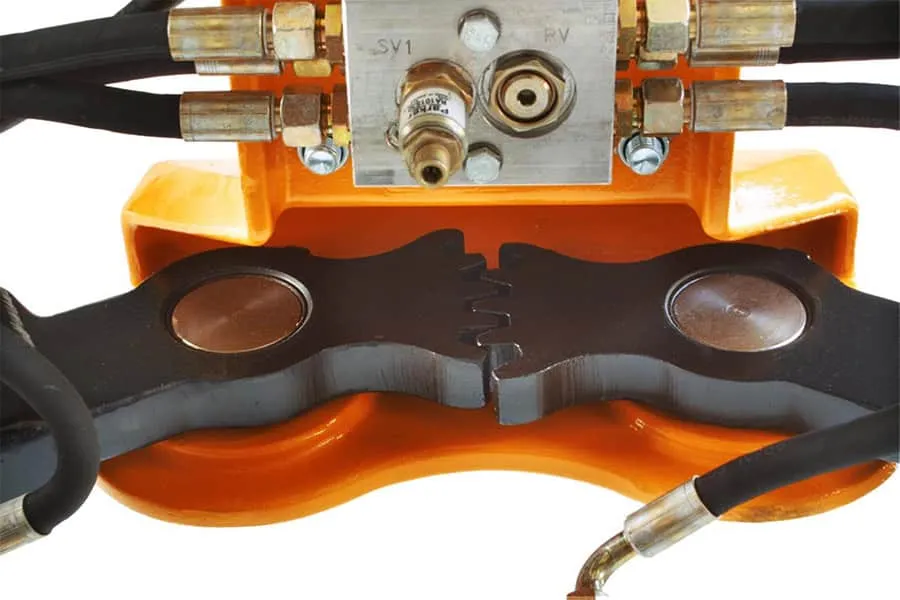

• Synchronised function of clamping arms due to sturdy gear-toothed quadrants.
• Safety through internal pressure relief valve (independent from crane pressure) and non-return valve (safe clamping force at pressure drop).

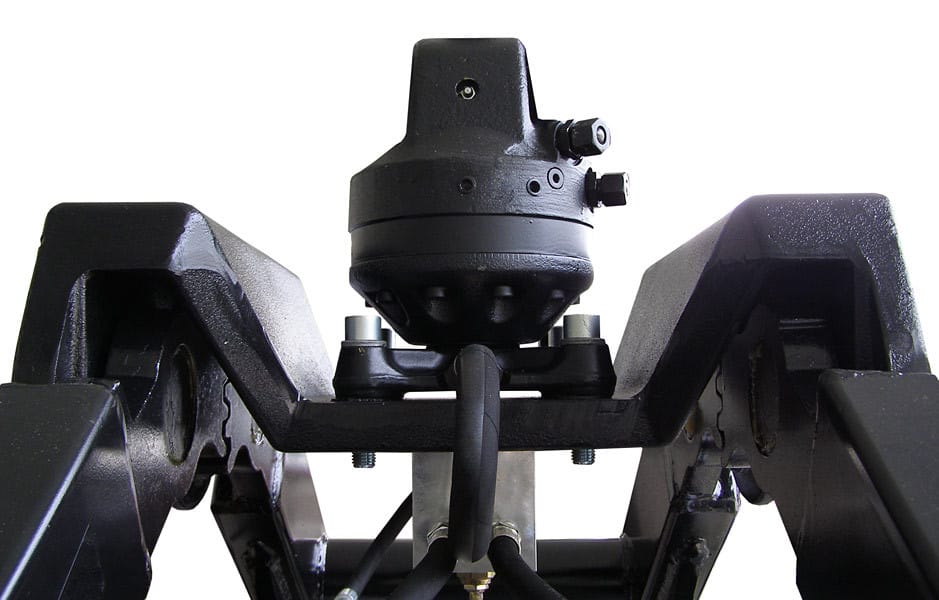

• Reduced overall height in comparison to the plunge depth due to lower rotator position.
• Compression rails with durable and replaceable rubber inserts.

Specifications:

Plunge depth A: 1100mm
Load capacity: 2000kg
Gripping min./max. G:160-1450mm
Height B:1665mm
Self weight: 320kg

Package consists of: brick stack grapple, KINSHOFER rotator KM 04 F, short connecting hoses KM 203 01 (rotator to grapple), upper suspension
KM 501, compression rails KM 381 40 (length 1000 mm), pressure relief valve, non-return valve
Please note: – the load capacity listed in the table depends on the load (the surface conditions, the size of individual stones, stack size and Type of banding). The grapple is not suitable for stacks of low-profile and unbundled items – full plunge depth A is only suitable up to opening range of 1100 mm (see Technical Drawings)
