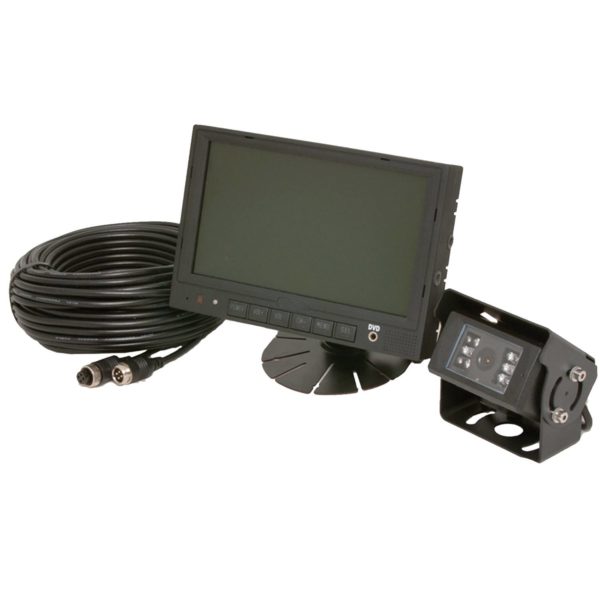

Ecco 7″ – 4 Camera Capable, Reversing Camera Kit, Single Image

Product Description: Ecco 7″ – 4 Camera Capable, Reversing Camera Kit, Single Image

Ecco 7″ 4 Camera Capable, Reversing Camera Kit, Single Image
This 4 camera capable CCTV kit is designed to satisfy the needs of all commercial vehicle operators whether they be a goods vehicle, tow truck, farm equipment or construction machinery. This is available in 2 kits to give the end user the choice of a 5.6? monitor or 7.0? monitor.

Camera Specification:

• Standard Colour
• Effective Pixels: 512 x 582
• Current Consumption: 400mA (max)
• Power Supply: 12 Vdc (from monitor)
• Operating Temp: -20°C to + 70°C
• Lens angle: 180°
• IP67
• Night Vision Distance: 10m
• Front Speaker
• No. Infra-red Lights: 12
• Day/Night Sensor
• Microphone
• Connection: RCA/4 pin DIN
• Anti Vibration: 10g
• Weight: 0.5 kg
• Certificate: CE, FCC, EMARK

Monitor Specification:

• 7? TFT LCD Wide Angle
• No. Languages: 11
• Auto Backlit Buttons
• Brightness Control: Automatic or Manual (selectable)
• Resolution (Pixels): 5.6? – 960 (H) x 234 (V) / 7.0? – 1440 (H) x 234 (V)
• Power Consumption: 5.6? – 8W / 7.0? – 25W
• Power Inputs: 12-32Vdc
• Anti Vibration: 5g
• Operating Temp: -20°C to +65°C
• Dimensions W X H X T (mm): 5.6? – 145 x 136 x 31.5 / 7.0? – 182 x 122 x 26
• Weight: 7.0? – 1.85 kg
• Certificates: CE, FCC, EMARK

Kit Includes:

• Monitor
• 1 Camera
• 20m Extension lead
• Power/Connection Loom
