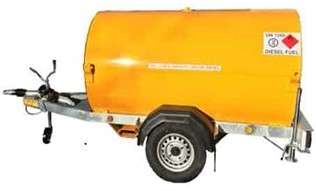

950 LITRE U.N. APPROVED BUNDED DIESEL EU HIGHWAY  BOWSER, c/w Hand Pump, Yellow

Product Description: 950 LITRE U.N. APPROVED BUNDED DIESEL EU HIGHWAY  BOWSER, c/w Hand Pump, Yellow

950 LITRE U.N. APPROVED BUNDED DIESEL EU HIGHWAY  BOWSER, c/w Hand Pump, Yellow

Technical Specifications

HITCH: C/W 40mm Eye Hitch or 50mm Ball Hitch

CHASSIS: The bunded diesel EU highway bowser chassis is constructed from 100 x 50 RSC fully welded with front standing plate and an ‘A’ frame drawbar. Hot dip galvanised.

SINGLE AXLE/SUSPENSION: Single Knott-Avonride 1500kg torsion beam axle fitted with 200 x 50 Auto reverse brakes.

WHEELS AND TYRES: 2 No 185 x 13 x 8 ply radial tyres. 4 stud 51⁄2”pcd rims.

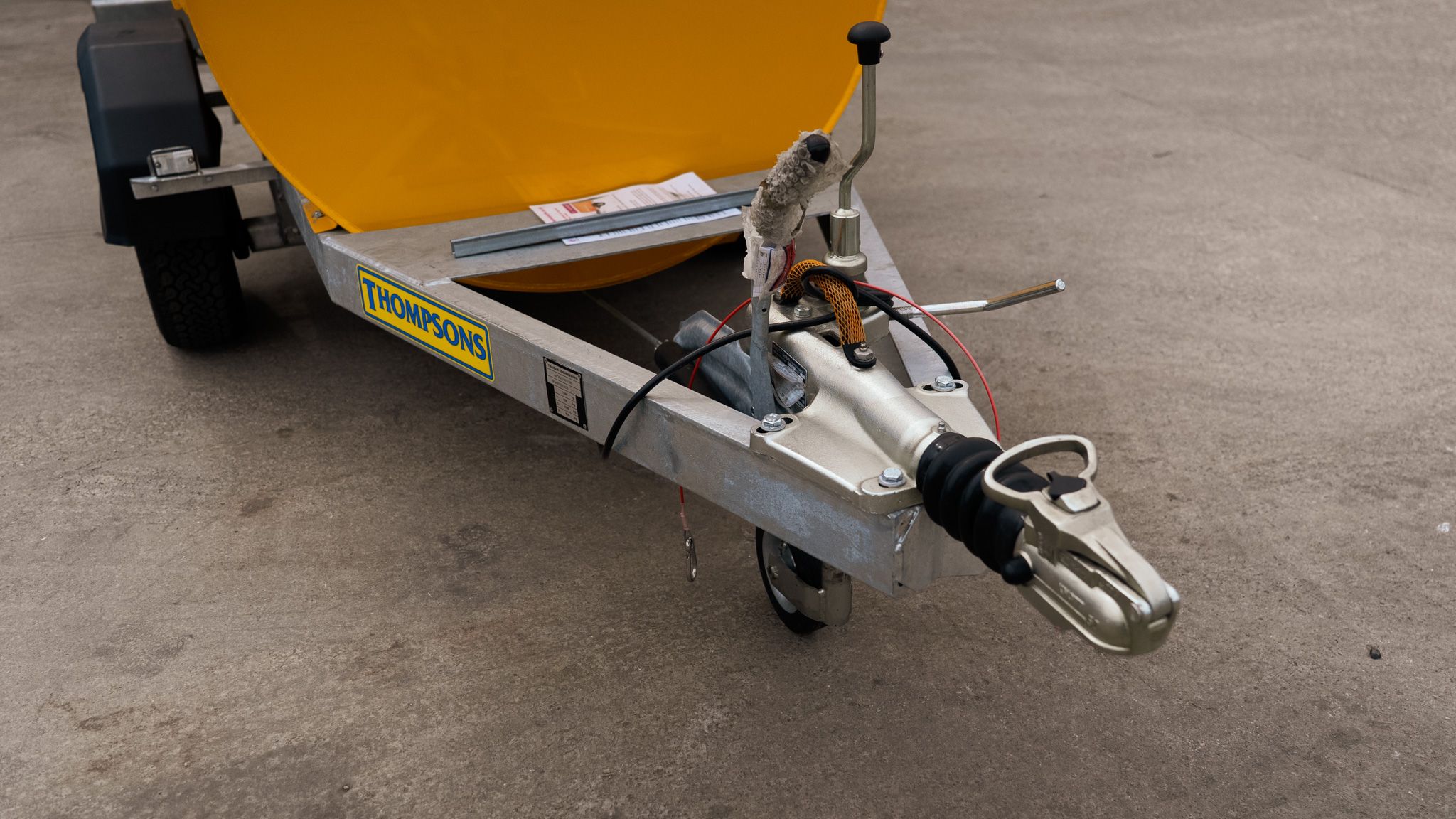

COUPLING: Knott-Avonride 2000kg posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable & 40mm ring eye or 50mm ball.

ANCILLARY EQUIPMENT: Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, Side reflectors, front reflectors, full road lighting c/w 13 pin plug and 7 pin adapter. Cylindrical in section with removable top section for tank access. Rear access door, fitted with stainless steel hinge and fully lockable. Bund contains 110% of inner tank. 4 lifting eyes, fork truck sockets for use when tank is not fitted in a chassis.

OUTER BUND TANK: Cylindrical in section with removable top section for tank access. Rear access door, fitted with stainless steel hinge and fully lockable. Bund contains 110% of inner tank. 4 lifting eyes, fork truck sockets for use when tank is not fitted in a chassis.

INNER FUEL TANK: The bunded diesel EU highway bowser inner fuel tank is constructed from translucent heavy duty polyethylene with a capacity of 980 Litres. 2” filler with cap & chain. 1” manual vent valve. Pressure relief valve in the top of the tank. Ball valve in base of tank to pump.

PUMP: Comes standard with HAND PUMP, K1 semi rotary hand pump c/w in line ‘Y’ strainer, 15’ of 1″ fuel hose & trigger nozzle Options available on request: Electric Pump, Petrol Pump, Non Resale Flowmeter.

FINISH: Tank- Primer and two top coats, single British Standard colour. Galvanised Chassis.

DELIVERY – TO BE QUOTED –

BUNDED DIESEL EU HIGHWAY BOWSER DIMENSIONS (APPROXIMATE):

• WIDTH: 1.550m (61”)
• HEIGHT: 1.524m (60”)
• LENGTH: 3.555m (140”)
• TOWING HEIGHT (Level): 580mm
• UNLADEN WEIGHT: 476kg
• LADEN WEIGHT: 1300kg approx. – 1500kg max

Additional information/Options Available:

•  K33 Flowmeter ( 3Digit, Totaliser & Re-set)
•  K24 Digital Flowmeter
•  Pneumatic Pump Up Tank Contents Gauge
•  12v Battery In Plastic Box
•  Solar Panel C/W 12v Battery In Plastic Box
•  Additional 12v Fuel Pump
•  Additional 110v Fuel Pump
•  Additional 230v Fuel Pump
•  Additional 1″ Petrol Powered Fuel Pump
•  Groz Water Filter
•  External Generator Fittings
•  Pressure Test Kit
•  2 x Number Plate Holders (Pair)
•  Trickle Battery Charger (Connects To Car Via Grey Auxiliary Plug To Recharge Battery)
•  9kg Fire Extinguisher (On External Bracket)
•  90 Litre Spill Kit
•  Spare wheel and holder Upgrade
•  Auto Cut Off Nozzle (not available on hand pump units)

950 LITRE U.N. APPROVED BUNDED EU HIGHWAY BOWSER
