Vishay- PM Onboard 1155 Sounder Alarm

Product Description: Vishay- PM Onboard 1155 Sounder Alarm

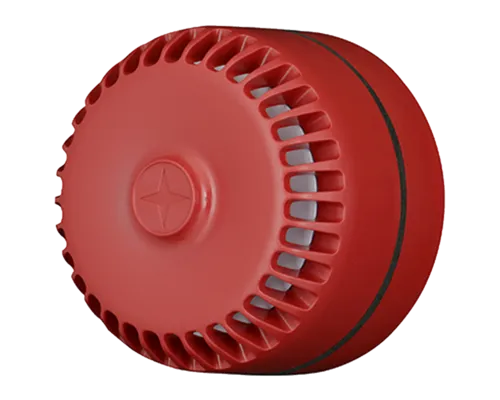

Vishay- PM Onboard 1155 Sounder Alarm. RoLP, Shallow Base, Red Body.

The Low Profile (RoLP) SV/R/S E8 is the markets leading conventional sounder, although it finds uses in many applications, such as security, general signalling and process alarms.
With its recognisable body, wide operating voltage and international reputation for quality, the RoLP is a flexible sounder suitable for use in most applications.

Features
• 102dB(A) sound output
• 32 tones (user selectable)
• Two stage alarm
• Automatic synchronisation
Benefits
• Ideal for general signalling
• Fire approved and general signalling tone options
• Alert and alarm function
• Improved tone clarity, reducing confusion

• Voltage 9-15Vdc 18-28Vdc
• Current 12mA (Typical Tone 3)
• Sound Output 102dB(A) (Typical Tone 3)]
• Tones 32
• Volume Control 10dB
• Monitoring Reverse polarity
• Temperature – 25ºC to + 70ºC
• Protection IP54 (s)* IP65 (d)*
• Construction ABS
• Weight 0.25Kg
• Colours Red
• (s)* Shallow Base
