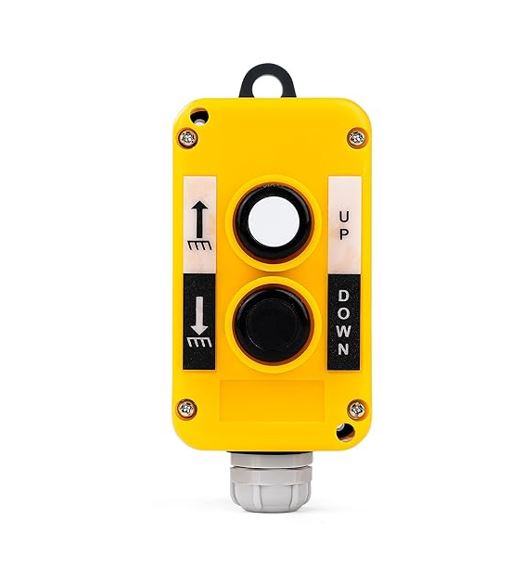

Two Button UP/Down Pendant Control Switch & Gland Only

Product Description: Two Button UP/Down Pendant Control Switch & Gland Only

Two Button UP/Down Pendant Control Switch & Gland Only.

• Ref: XDL10-EPB2

• INSTANTANEOUS OPERATION TYPE: Both switches on the hoist lift control box are normally open. The lifting hoist pushbutton switch is an instantaneous operation type, which conducts only when pressed and breaks the contact when pressed to stop. Rated voltage and current: AC 240V/3A, Pushbutton: up, down.
• QUALITY MATERIALS: Crane hook pushbutton switch case is injection moulded with ABS material and reinforcing rib to prevent deformation, which increases the performance of splash-proof, impact-resistant and insulation.
• IP65 WATERPROOF GRADE: The back cover of the crane hoist pushbutton switch is sealed with rubber gasket, the protection grade can reach IP65, waterproof and dustproof, safer to use, indoor and outdoor can be used safely.
• EASY TO USE: The crane hook control switch adopts modular structure design, sensitive contacts, high conductivity, clear internal structure, fine workmanship, easy to disassemble and install.
• WIDE RANGE OF APPLICATIONS: Crane chain lift suspension regulator can be used for automation control, control of car lift tailgate, cranes, lifting platforms and tipper trailers and other equipment.

• Material: ABS Plastic

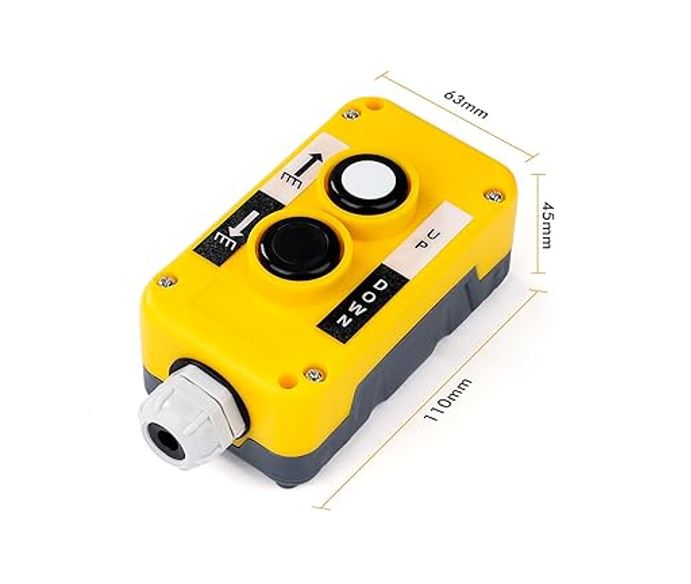

• Size: 110mm(L) x63mm(W) x45mm (H)
• Rated Operating Voltage: AC120V 6A | AC240V 3A | AC400V 1.5A
• Rated Heating Current: 10A
• Rated Insulation Current: 600V
• Operation Type: Self-Reset
• Protection Level: IP65
• Waterproof Connector: M22
