Product Description: The Safewheel wheel nut retainer Blue 32mm/33mm, 335 PCD (10-Stud wheel) ea

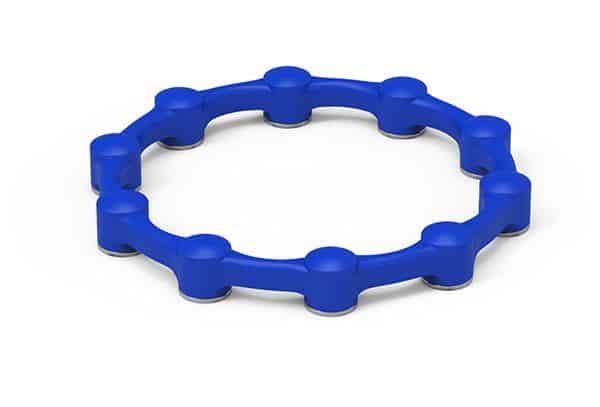

The Safewheel wheel nut retainer Blue 32mm/33mm, 335 PCD (10-Stud wheel) ea
The primary functions of Safewheel™ are to:
-
Retain wheel nuts within the ring structure to lower the likelihood of them loosening and greatly reduce the likelihood of wheel nuts backing away completely from the wheel hub
-
Protect wheel nuts from weathering, corrosion and road damage through covering each wheel nut with a cap
-
Reduce the ingress of dirt and extraneous matter into the thread of the wheel nut and stud
-
Protect individuals that come within close proximity of the vehicle by covering the wheel nuts
-
Provide a clear commitment to roadworthiness and professionalism to other road users, customers, health and safety, road and transportation associations
The primary benefits of fitting Safewheel™ are:
– Improved safety of structurally critical wheel nut fixings on vehicle wheels
– To help to reducte maintenance time and costs
– To improve professionalism, roadworthiness and safety of company image and reputation
– To provide a cost effective solution to improving wheel nut security
– Product can be re-used many times
Additional information
Safewheel™ is designed to be fitted on wheels
without trims/step rings. Where a trim/step ring is fitted to the wheel,

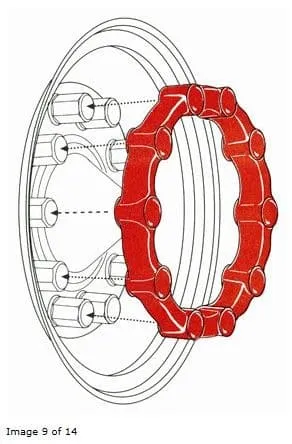

Dustite LR® indicators must be used. Safewheel™ is fitted onto wheel nuts once the nuts have been tightened to the manufacturers recommendations using a suitable torque wrench. The Safewheel™ should not be used as a direct replacement for a sound, safe vehicle wheel maintenance schedule, should be fitted in accordance with the product guidelines (available from the downloads tab) and used in combination with a robust wheel safety system of checks.
Manufactured in a robust but lightweight polymer, the material blend produces a product with the correct stiffness and elongation for this application and the material has a vast working temperature range of -40°C to +120°C whilst being UV stable, with a high resistance to salts, grease and other roadside chemicals.
Safewheel™ is for EU-spec wheel PCD, and are sized by the corresponding measurement (in millimetres) across the flats of the hexagonal nut fitting, along with a measurement (also in millimetres) of pitch circle diameter (PCD). Current sizes available* include (in mm):
- 24mm, 205 PCD (6-Stud wheel)
- 24mm, 245 PCD (6-Stud wheel)
- 27mm, 205 PCD (6-Stud wheel)
- 27mm, 245 PCD (6-Stud wheel)
- 30mm, 275 PCD (8-Stud wheel)
- 30mm, 335 PCD (10-Stud wheel)
- 32mm, 275 PCD (8-Stud wheel)
- 32mm, 335 PCD (10-Stud wheel)
- 33mm, 275 PCD (8-Stud wheel)
- 33mm, 335 PCD (10-Stud wheel)
