Teal Compact Classic 24v handwash sink for large motor vehicles

Teal Compact Classic 24v handwash sink with Loose Bowl for motor vehicles

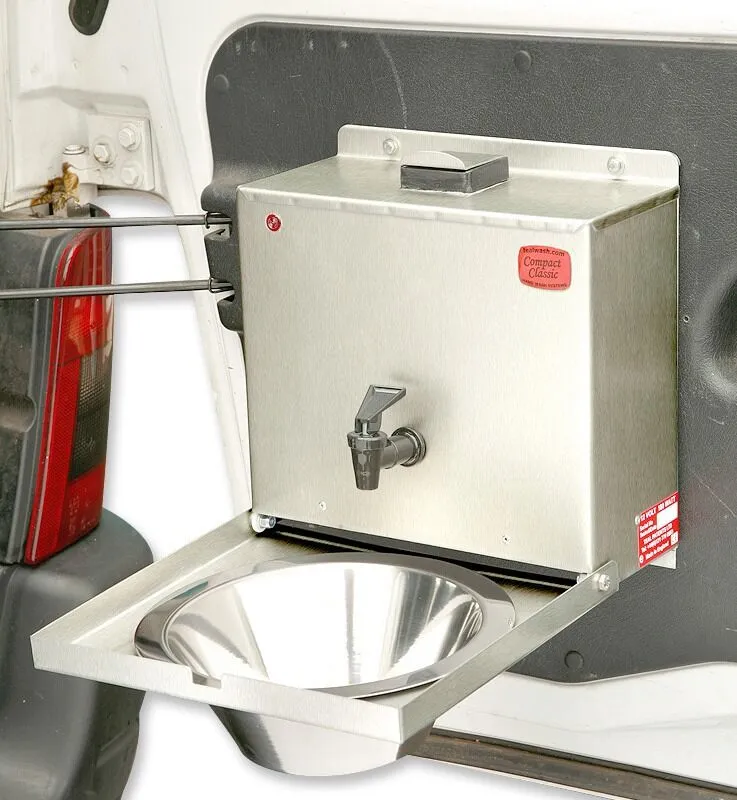

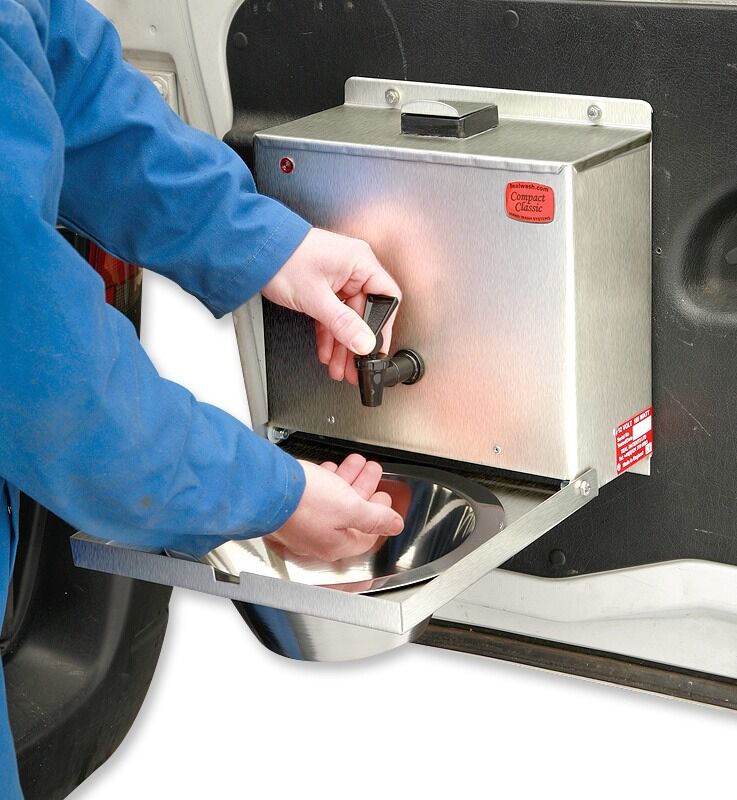

The TEAL Compact Classic hot water hand wash unit is designed to be fitted to motor vehicles, providing a hot water hand wash wherever it’s needed. Ideal for hot trades and food vans, the Compact Classic has a special finish of brushed stainless steel and has a polished stainless steel bowl. The Compact Classic is available in 12 and 24 volt configurations.
• 12 and 24 volt models, two wire fitting
• Fully automatic and battery safe
• Ideal and effective water temperature of 45° [+/- 2°C]

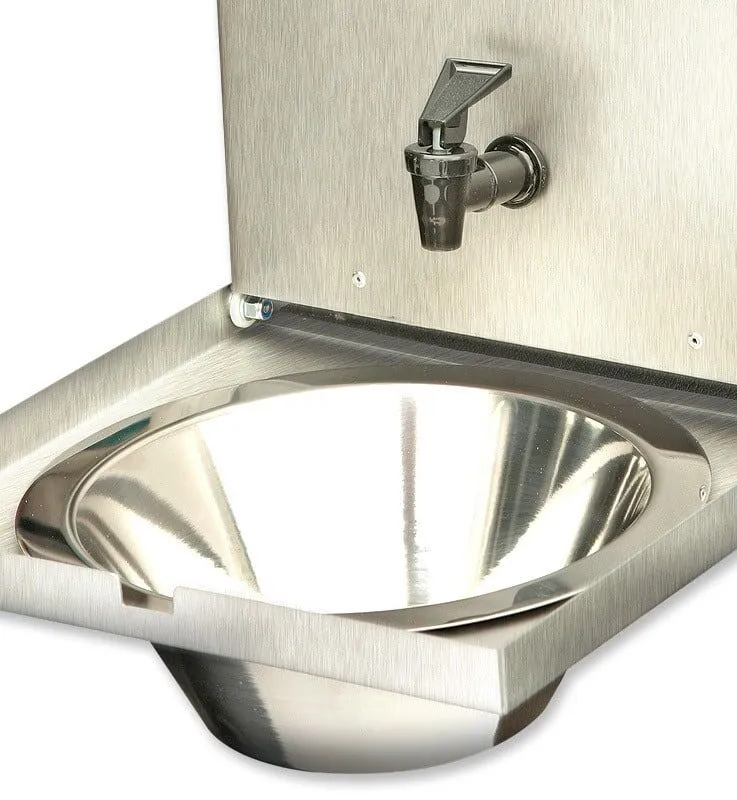

• Removable brushed stainless steel bowl for easy emptying
• ‘No water’ safety cut-out
• Meets European EMC Automotive Directive 95/94/EMC
• Optional soap (KS/SB) and paper towel dispensers (HM/TH)

Additional Information
• WEIGHT 3.6kg (dry), 7.4kg (full)
• WIDTH 290mm
• HEIGHT 350mm
• DEPTH 360mm (bowl open), 210mm (bowl closed)
• CAPACITY 3.8litres (3.1litres usable)
• HEATER 180watt 15amp (CC12), 250watt 15amp (CC24)
• POWER SUPPLY 24V vehicle,
• MOUNTING OPTIONS Vehicle mounted
• WASHES PER FILL 15 washes
• AVAILABLE TO HIRE No
• AUTOMATIC SENSOR No

CCLB-12-24_v1

12v-24v-CCLB-operating-instructions_Rev2
