Road Angel Halo Dash Cam Hardwiring Kit

Product Description: Road Angel Halo Dash Cam Hardwiring Kit

Road Angel Halo Dash Cam Hardwiring Kit –

for Halo Go2, Ignite 2, Start 2, Spark, Spark Dual, Vision 3, View 3, Ultima, Play, Guard & Guardian

• Road Angel Halo Dash Cam Hardwire Kit- USB Type-C & OBD 2
• Road Angel Halo Dash Cam 5V 2-in-1 Hardwire Kit- USB Type-C & OBD 2
• Enable Always-On Parking Mode

Product Code: HWK5VC-OBD

EAN No: 5060801412636

 Compatible with:

• Halo Go, 2 Halo Drive 2, Halo Start 2, and Halo Ignite 2, Halo Vision 3, Halo Elite, Halo Play, Halo Guard, Halo Ultima, Halo Guardian, Halo Spark / Spark Dual.
• The Road Angel Halo Hardwire Kit enables a seamless, always-on recording mode, ensuring your dash cam stays active even when your vehicle is parked.

Key Features:

• Always-On Parking Mode: Keep your dash cam recording while parked to capture every critical moment.
• Simple Installation: Connect one end of the cable to your vehicle’s fuse box; the other end plugs directly into the Road Angel Halo dash cam.

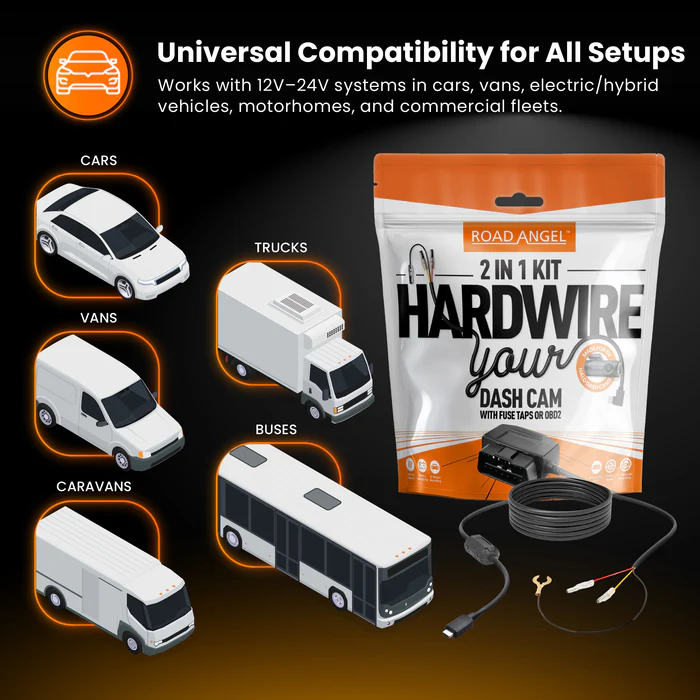

• Compatible with Various Vehicles: Works with cars, electric and hybrid vehicles (EV/HEV), vans, motorhomes, trucks, and other commercial vehicles.
• 5V, 3-Wire USB C Cable: Comes with three fuse tap options for an easy, versatile setup.
• 12V/USB Ports Free: Hardwiring frees up your car’s power ports for other devices.
• OBD2 Port adapter for optional compatibility.

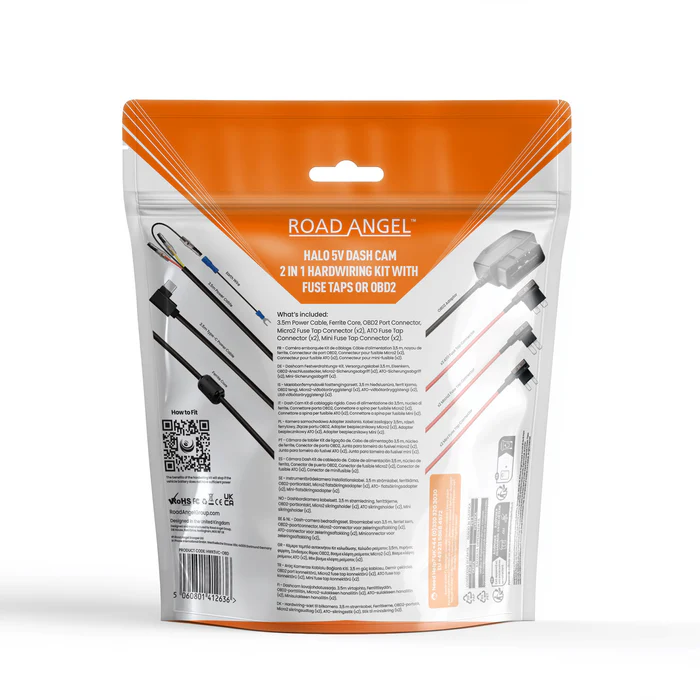

What’s Included:

• K5VC-OBD Hardwiring Kit with Fuse Taps
• Optional OBD Connection adapter
• Fuse Taps:

o 2 x ATO Fuse Tap Connectors

o 2 x Micro2 Fuse Tap Connectors

o 2 x Mini Fuse Tap Connectors

• Power Cable: 4M power cable with USB- C connection.
• Ferrite Core Noise Suppressor: Minimise DAB or radio interference with the included ferrite core.

Parking Mode Options:

• 3-Tier Parking Mode
• Dormant Mode: Camera remains off, activating upon detection of movement.
• Time-Lapse Mode: Compresses footage, preserving power while capturing key moments.
• Normal Mode: Continuous real-time recording, capturing events as they happen.

Parking mode is activated 15 minutes after your vehicle is turned off.

• 2-Tier Parking Mode
• Time-Lapse Recording: Compressed recording to conserve memory.
• Dormant Mode: Activates only when motion or impact is detected.

Parking mode is activated 5-15 minutes after turning your vehicle off.

Please see the individual product manual and specification for parking mode capabilities

Additional Features:

• Battery Voltage Monitoring: This prevents battery drain by cutting power to the dash cam when the voltage on your car’s battery/power circuit is low. It is pre-programmed at 11.8V, protecting your car battery while keeping your dash cam ready for action.

Installation Tips:

• Easy Installation: Designed to be minimally invasive and easy to remove, restoring your car to its factory setup in minutes.
• Wire Colour Key:

o   Yellow: Permanent Live (constant positive)

o   Red: Ignition Live (positive switched)

o   Black: Ground (GND)

Note: Installation may require minor modifications. If unsure, consult a professional auto-electrician. Always follow vehicle manufacturer guidelines.
