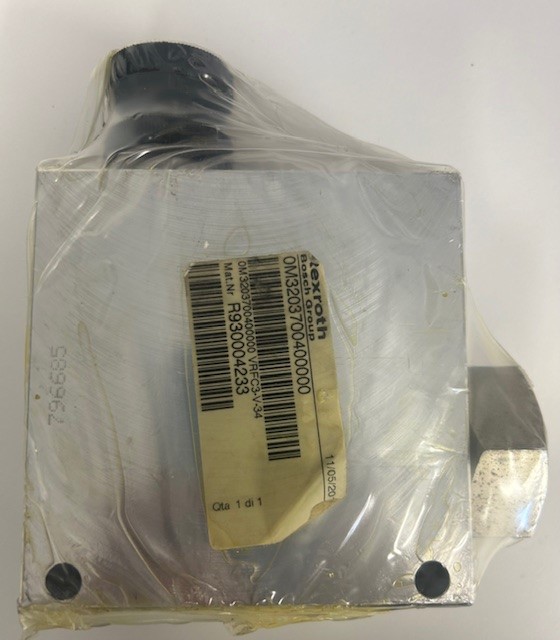

REXROTH R930004233 Flow regulator 3 way, pressure compensated

Product Description: REXROTH R930004233 Flow regulator 3 way, pressure compensated

REXROTH R930004233 Flow regulator 3 way, pressure compensated

Description
A constant flow rate, regardless of system pressures, is
established from E to R, while a minimum pressure differential
of appr. 5 bar (70 psi) exists between the two ports. Input
flow supplied to E in excess of the regulated output at R is
by-passed to T. Output flow can be varied from closed to the
nominal maximum rating for the valve. Reverse flow from R
to E is limited by the selected opening of the restrictor and is
not pressure compensated. Flow from T to E or from T to R is
not possible. Increasing or decreasing inlet flow may cause
slight increase or decrease of Regulated flow.

0M3203XY_RE18309-38
