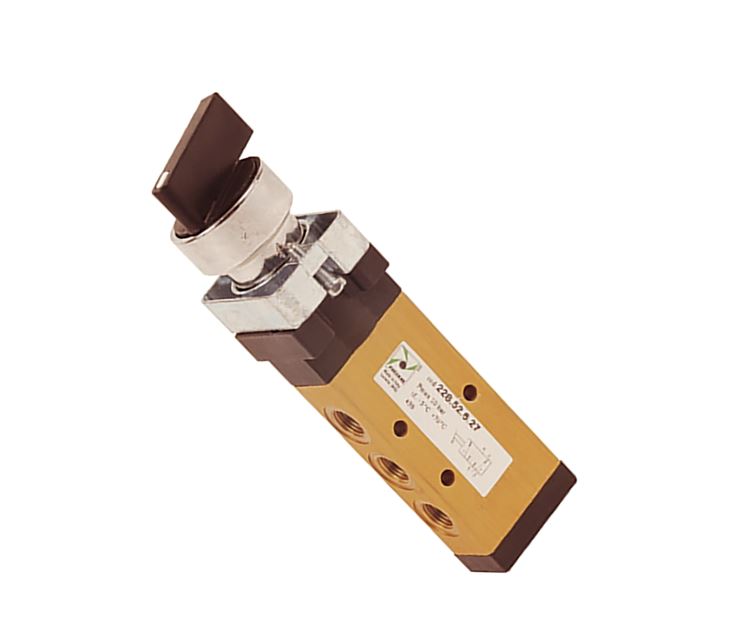

Pneumax G1/8 5/2 Techno Selector Switch Valve 2 Position

Product Description: Pneumax G1/8 5/2 Techno Selector Switch Valve 2 Position

Pneumax G1/8 5/2 Techno Selector Switch Valve 2 Position.

Pneumax 228.52.6.27, manufactured by Pneumax, is a 5/2 valve, part of their Series 228 range. This pneumatic component, sold in the United Kingdom, has a nominal flow rate of 540l/min and an operating pressure range of 0…10 Bar. It utilizes compressed air as an operating medium, complying with ISO 8573-2010 (7:4:4) standards. The valve’s design incorporates a spool structure and is mounted via through holes. It lacks a reset function and is actuated by a selector switch.

• Operating Medium: Compressed Air to ISO 8573-2010 (7:4:4)
• Mounting: Through Holes
• Type of Reset: None
• Design Structure: Spool
• Nominal Flow Rate: 540l/min
• Valve Function: 5/2 Valve
• Operating Pressure: 0…10 Bar
• Pneumatic Connection: G1/8
• Actuation Type: Selector Switch
• Range: Series 228
