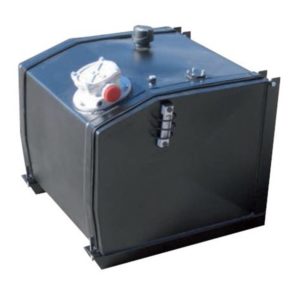

Palfinger 140ltr Oil Tank – Steel, (**Return pipe not inc) As fitted to 8×4 Chassis

Product Description: Palfinger 140ltr Oil Tank – Steel, (**Return pipe not inc) As fitted to 8×4 Chassis

Palfinger 140ltr Oil Tank – Steel, (**Thompsons Return pipe not inc) As fitted to 8×4 Chassis

Palfinger oil tank dimensions are chosen in a way that an easy mounting on the vehicle is guaranteed,

All oil tanks are equipped with an oil gauge glass, a flange for oil sensor and a return filter to minimise danger of contamination within the hydraulic system.

• Tank Volume: 140ltr

• Weight 50Kg

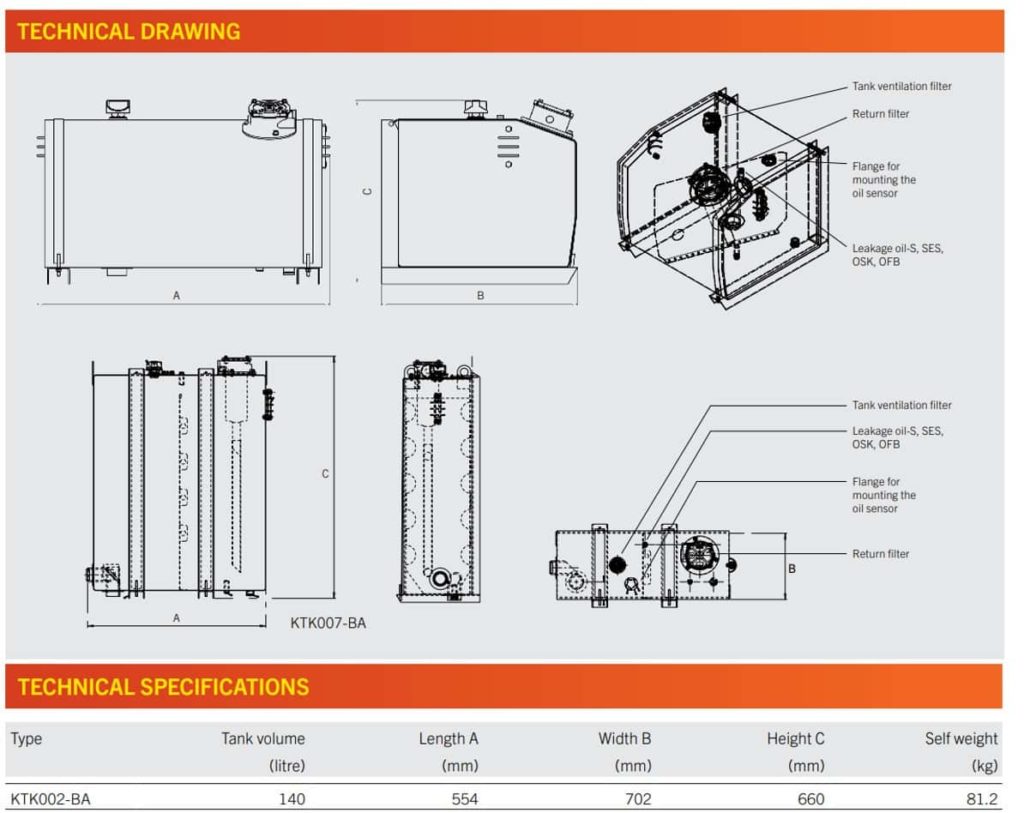

Tank only sizes:

• Length A (Width): 500mm

• Length B (Depth/Length): 635mm

• Length C (Height): 525mm

Sizes WITH bracketry/Housing:

• Length A (Width): 554mm

• Length B (Depth/Length): 702mm

• Length C (Height): 660mm

PDF – Palfinger Oil Tanks
