Name: OMFB Binotto Pneumatic end of stroke knock off valve KVLV_FC_G18-PNM_T6_25
SKU: 10001800123BI
Price: 98.00 GBP
Availability: InStock

OMFB Binotto Pneumatic end of stroke knock off valve KVLV_FC_G18-PNM_T6_25

Inc VATExcl VAT Inc VATExcl VAT

Excl. VAT

Incl. VAT

You Save: 13%

OMFB Binotto Pneumatic end of stroke knock off valve FNC4610000A0200101
VLV Fine Corsa G1/8 C/INN 06 PNM.NA

Product Description: OMFB Binotto Pneumatic end of stroke knock off valve KVLV_FC_G18-PNM_T6_25

OMFB Binotto Pneumatic end of stroke knock off valve KVLV_FC_G18-PNM_T6_25

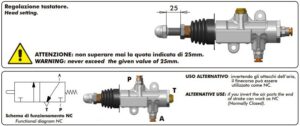

Designed to cut off the air flow to the tipping valve and therefore stop the raise when the cylinder arrives at the planned position, this system is normally used as an alternative to the end of stroke cable connected to the spool of the tipping gear.

Max pressure: 12bar

Service temperature: -40° + 140°C
