Part number 7010001000
Type: MAV26LESCC

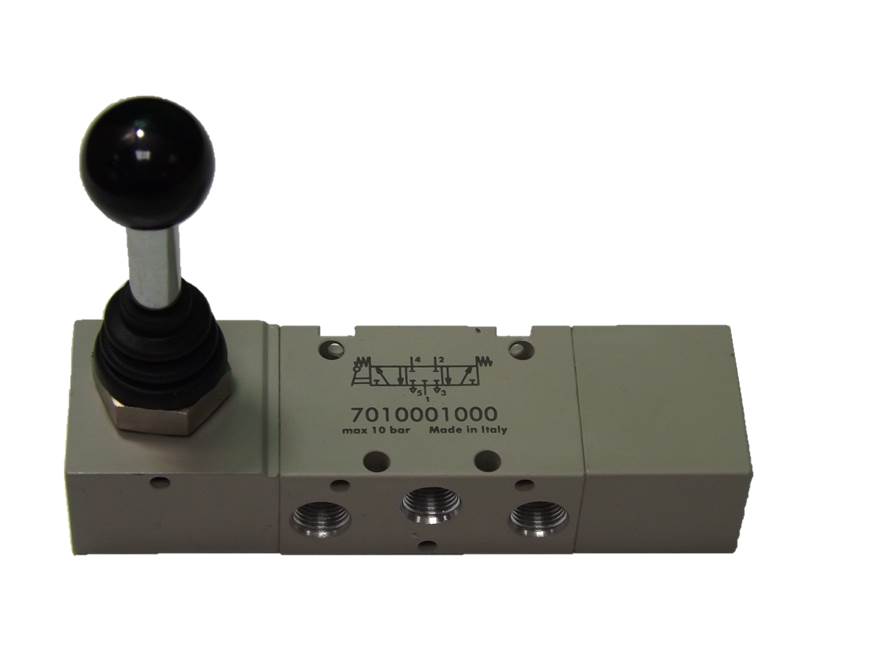

Manually-actuated control valve for Thompsons Pneumatic Wacker Carriers.
5/3 G1/8
Technical information:
– Operating pressure (bar): 2.5 to 10 bar
– Temperature range (°C): -10 to +60ºC
– NC = normally closed
– NO = normally open
– m = monostable
– bi = bistable
– CC = closed centre
– OC = open centre
– PC = centre vented
Max. working pressure (bar) 10
Temperature range (°C) -10 <> +60
Min. working pressure (bar) 2.5
Connection 1/8″
Type m
Function 5/3
Central position CC
