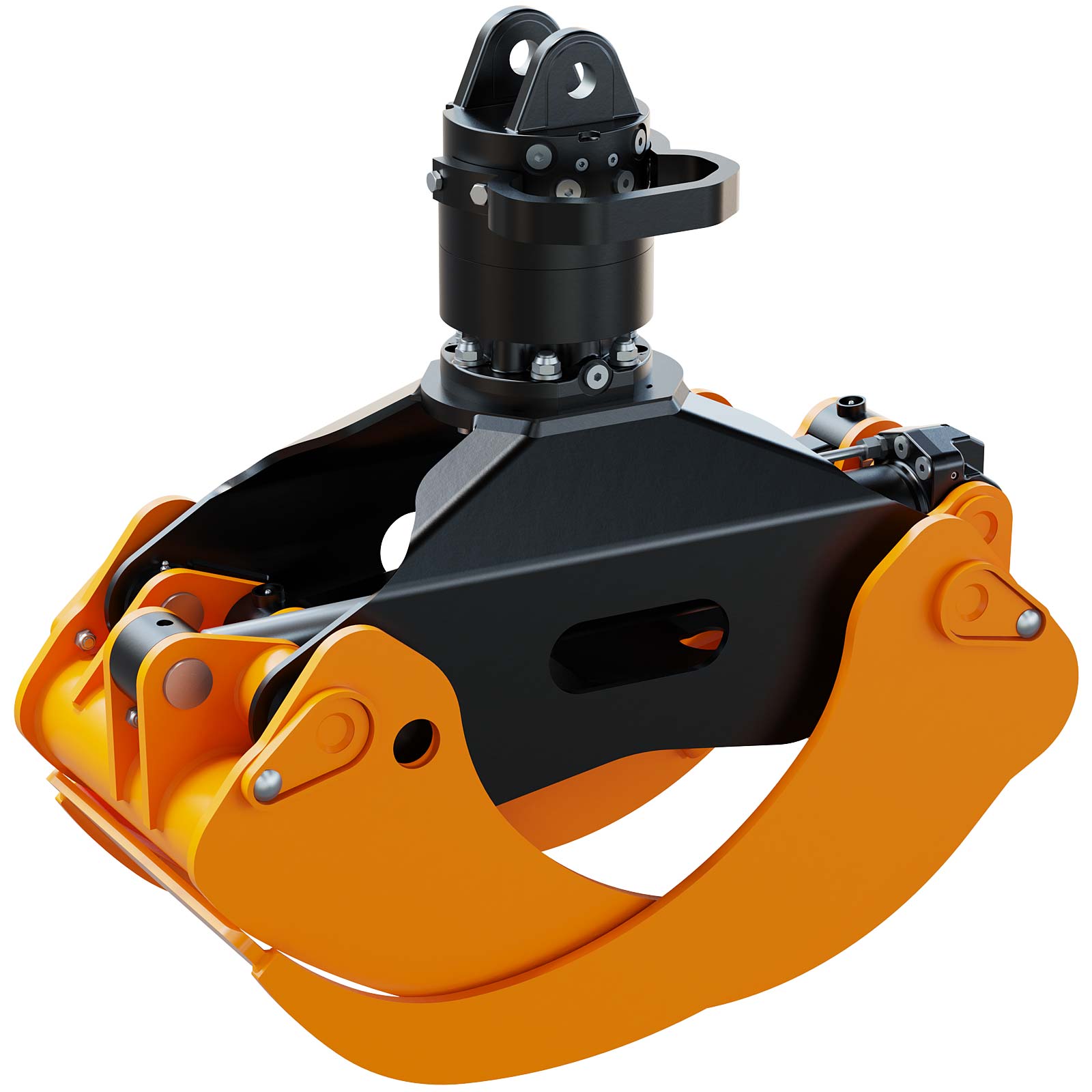

Kinshofer Logging Grapple KM 634/G34-0.25/K06F170

Product Description: Kinshofer Logging Grapple KM 634/G34-0.25/K06F170

Kinshofer Logging Grapple KM 634/G34-0.25/K06F170

Logging Grapple KM 634
Volume: 0,25 m² / 0.17 cord
Width: 420 mm
Opening range: 1470 mm
Closing force: 13 kN
Capacity: 4000 kg / 8818 lbs
Operating pressure: 240 bar
with non-return valve
Paint: RAL 9005 / RAL 9005
Hydraulic Rotator KM06F173-35
with flange and hoseguard, for logging
Load capacity: 6000 kg
Diameter hole pattern: 173 mm
Upper connection: 81 x 35 mm
Torque: 1000 Nm
Moment of deflection: 8500 Nm (max)
Operating pressure and oil flow:
200 – 260 bar at max. 75 l / min
200 – 370 bar at max. 40 l / min
Hydraulic couplings: G1/2″
Fittings JIC3/4/JIC3/4/16S
with short hoses KM 203-01
with hose guard KM 206
with upper suspension

Kinshofer_logging_grapple_KM634_en
