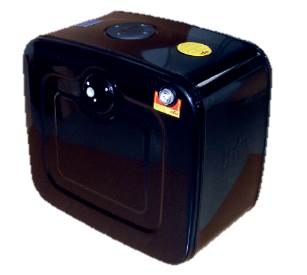

Hyva Side mounted Oil Tank Kit 150ltr MkII Inc mounting plate valve

Product Description: Hyva Side mounted Oil Tank Kit 150ltr MkII Inc mounting plate valve

Hyva Side mounted Oil Tank Kit 150ltr MkII Inc mounting plate valve
The design of the tank is fully adapted to the modern trucks and tractors and the available tank supports, straps and profiles make fitting very easy. Hyva oil tanks are robot welded to secure the quality. Most tanks are equipped with a 10 micron air breather filter integrated in the filler cap and an oil level indicator, The SM-range consists of oil tanks with a volume ranging from 65 to 213 litres with return filter and pt-valve mounted on the side.
Kit Includes:

Straps and Brackets Kit
1 x 14017208 Side mounted oil tank 179L/150L-MP-MR
1 x14020160 Support Kit oil tank side mounted.

Short Specification:

• Gross volume: 179 Ltr
• Working volume: 150 Ltr
• Mounting plate for valve fitted: Yes
• Delivered including return filter: No
• Delivered including mounting flange for return filter: Yes
• Weight tank: 54 kg*
• Inlet: 3/4″ BSPIT
• Outlet: 1 1/2 ” BSPIT
• *: Including supports

See specification sheet for full details
