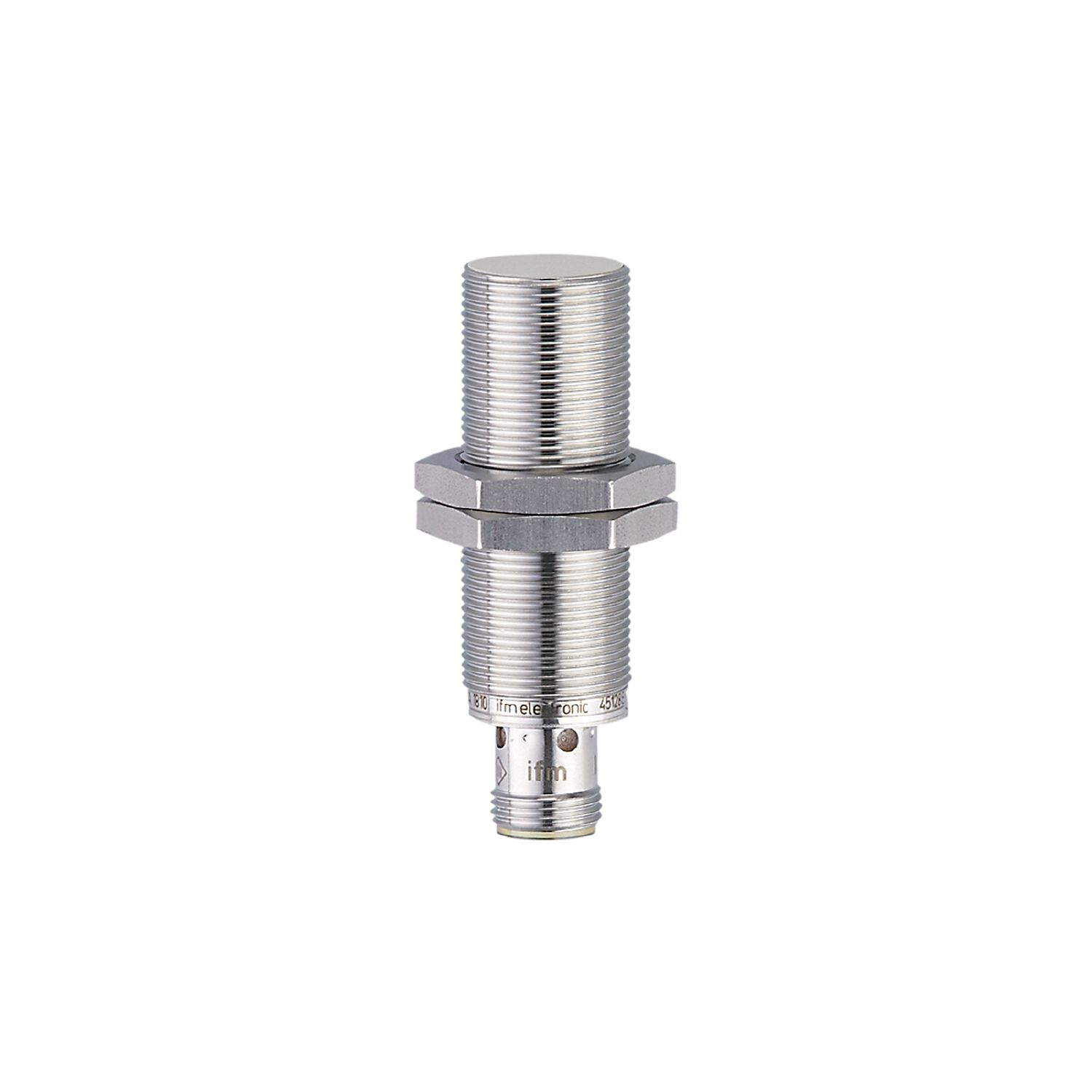

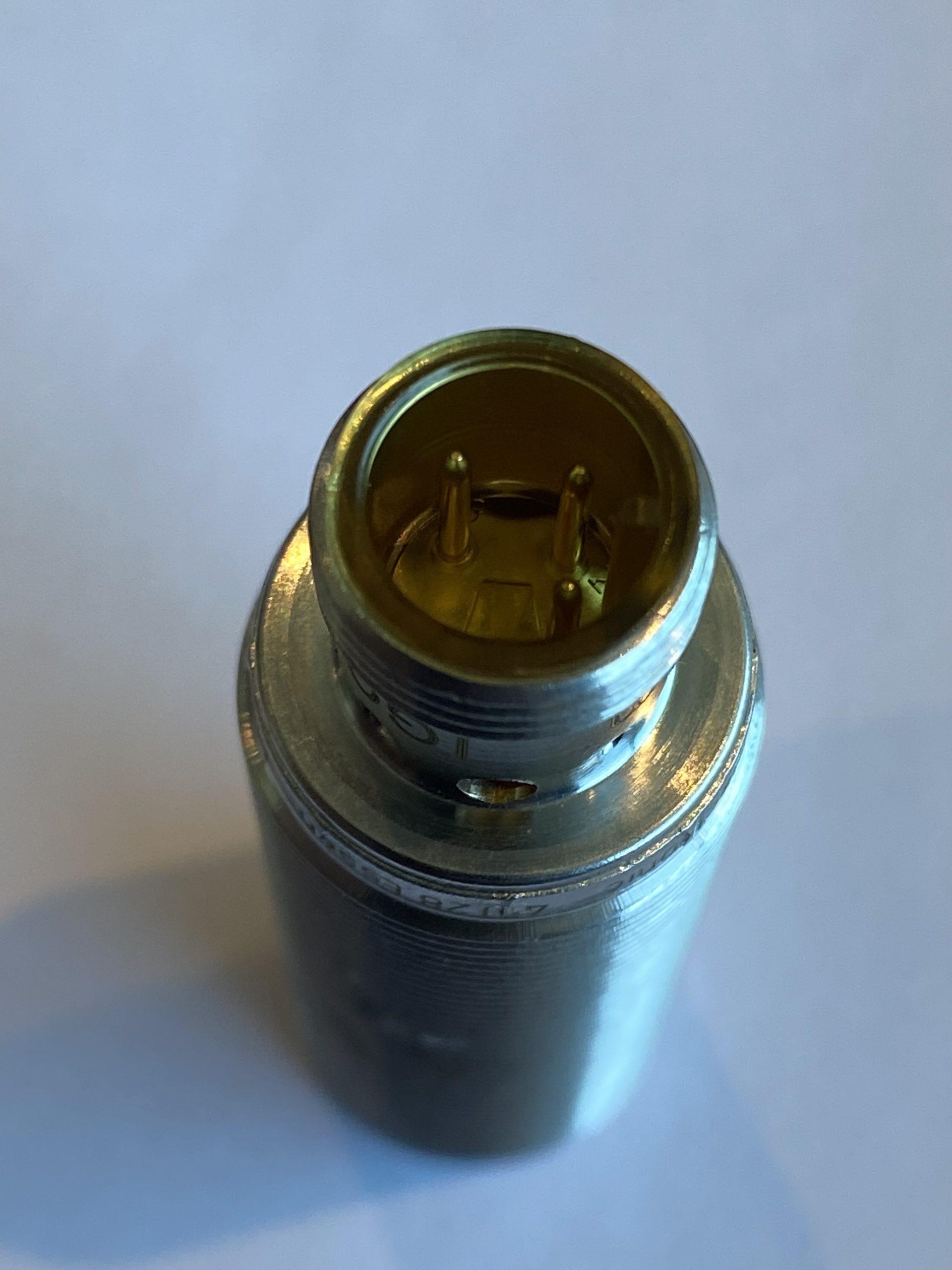

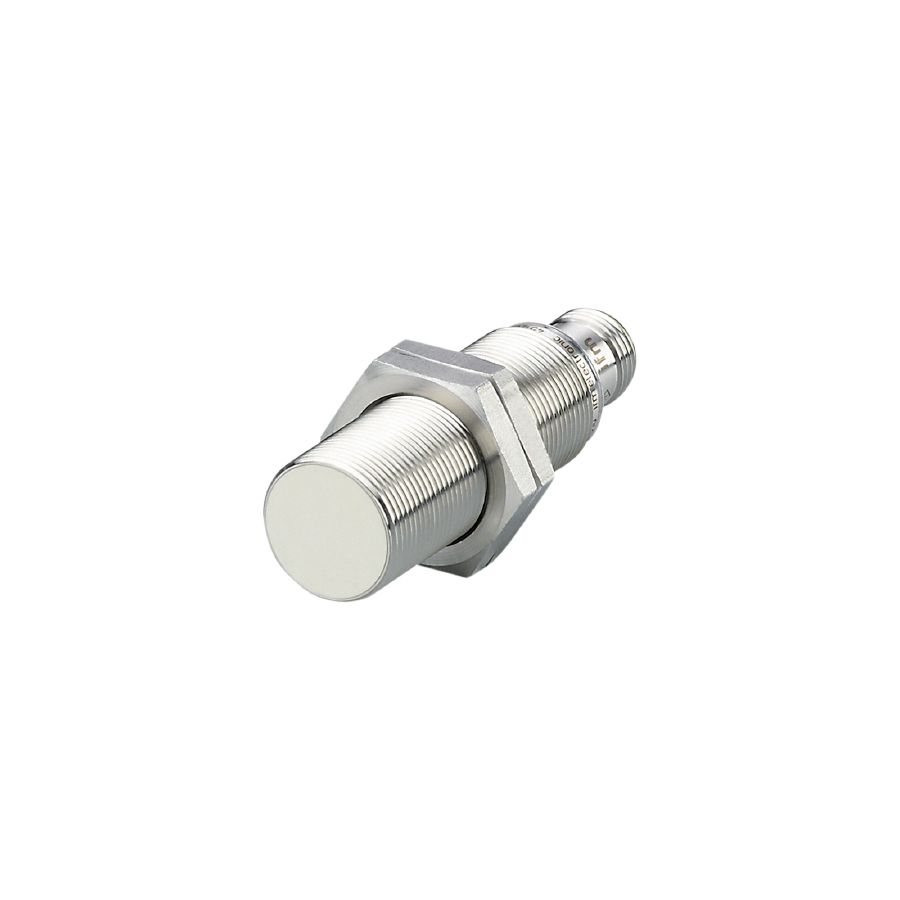

Hyva IGC236 Rear Proximity Sensor Only 3 Pin

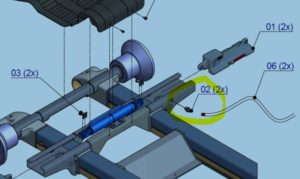

As fitted to Hyva Hook System Combi-Lock Jaws
Electrical design | PNP |
Output function | normally closed |
Sensing range [mm] | 8 |
Housing | threaded type |
Dimensions [mm] | M18 x 1 / L = 60 |
Operating voltage [V] | 10…30 DC |
Current consumption [mA] | < 10 |
Protection class | II |
Reverse polarity protection | yes |
Electrical design | PNP |
Output function | normally closed |
Max. voltage drop switching output DC [V] | 2.5 |
Permanent current rating of switching output DC [mA] | 200 |
Switching frequency DC [Hz] | 400 |
Short-circuit protection | yes |
Overload protection | yes |
