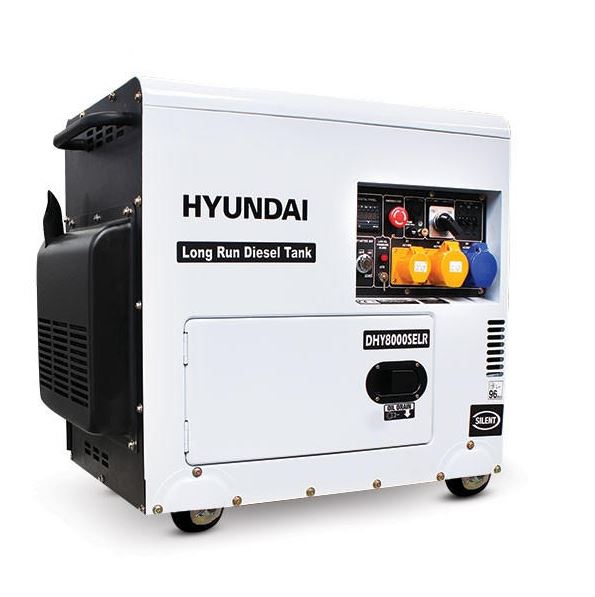

The DHY8000SELR standby generator is the long running version of the DHY8000SE, with a large 25L diesel tank, boosting the maximum running time of this standby diesel generator to 30 hours of backup power.
Powered by a 4-stroke, air-cooled D452 Hyundai diesel engine, the DHY8000SELR backup generator has a maximum output of 5.8kW. It features the same AVR alternator which produces clean energy. Although it won’t be able to run everything, it allows more essential home items to continue running in the event of a power cut when the National Grid fails.
The DHY8000SELR is ATS (Automatic Transfer Switch) compatible. *ATS is an optional extra that can be connected to an ATS system for maximum convenience. When the ATS module detects a loss of power from the mains supply it simply powers your generator up automatically, then shuts it off when it detects power returning from the mains. This is also an electric start diesel generator, with a simple turn of the key being all that’s required to start or stop the machine when controlled manually.
Housed in silenced casing, the DHY8000SELR is a very quiet machine and won’t disturb you, your family or your employees when powering your building. With a sound rating of 70dB @ 7 metres you will seldom hear the generator while it’s at work.
The DHY8000SELR diesel generator is economical to run, using roughly 1L of diesel every hour. Since the DHY8000SELR can run on red diesel, which is significantly cheaper than the diesel you put into your car making extra savings over long run times, the perfect back-up solution.
For peace of mind, this generator comes with a Hyundai 1 year / 1,000 hour warranty (whichever comes first),
Designed for standby use. For Continuous power supply, we recommend a 1500rpm diesel generator,
Please note, this is a 3000rpm generator, ideal for backup power in the event of a power cut, or for powering a workshop for example. For more frequent use, or if running for extended periods of time every day (prime power) you should purchase a 1500rpm water-cooled, slow running generator that has a much longer lifespan.
Model | DHY8000SELR |
---|---|
Rated/Prime kVA* | 6.3 |
Rated/Prime kW | 5 |
Max/Standby kVA* | 7.25 |
Max/Standby kW | 5.8 |
Phase | Single |
Voltage | 115 / 230 |
Connection Method(s) | Sockets – 1 x 115V/16A 1 x 115V/32A 1 x 230V/32A |
Rated Speed (RPM) | 3000 |
Frequency (Hz) | 50 |
Max/Continuous Current (Amps) | 115v 50 / 43.5 – 230v 25 / 21 |
Power Factor (Cosφ) | 1 |
Fuel/Power Source | Diesel |
Fuel Tank (Litres) | 25 |
Runtime (Hours) @ 100% Load | 14.62 |
Noise Level @ 1m 75% load (dB) | 96 |
Noise Level @ 7m 75% load (dB) | 70 |
Hyundai Diesel Engine Model | D450E |
Max Engine Power (hp) | 12 |
Engine Displacement (CC) | 456 |
No. of Cylinders | 1 |
Recommended Oil Type | 15w40 / 10w40 |
Oil Capacity (Litres) | 1.65 |
Oil Filter Part No. | D450-B9+D450-B8 |
Aspiration | Natural |
Fuel Regulation/Governor System | Mechanical |
Fuel Consumption (100% Load) [Litres] | 1.71 |
Fuel Filter Part No. | D450-R05 |
Cooling | Forced Air-Cooled |
Alternator Model | D450/500-S01-4 |
Breakers | 1P 30A 1P 21A 1P 13A |
Alternator Type | Brushed |
Voltage Regulation | AVR |
Air Filter Part No. | D450-I4 |
Net Weight (kg) | 158 |
Gross Weight (kg) | 167 |
Wheel Kit? | Yes |
Product Dimensions L x W x H (mm) | 960 x 560 x 890 |
Packaged Dimensions L x W x H (mm) | 960 x 560 x 910 |

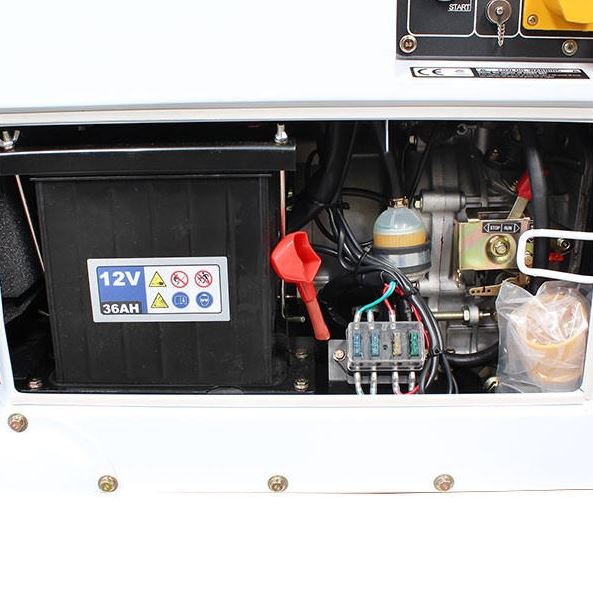

Battery (Ah) | 12v 36a/h |
ATS / MTS Compatible | Yes |
Control Panel | LED3 DISPLAY |
Warranty | 1 Year / 1000 Hours* (Terms apply) |
Model EAN | 610370632338 |
Product Type | Diesel Generator |
Assembly Required? | Yes – some assembly may be required |
