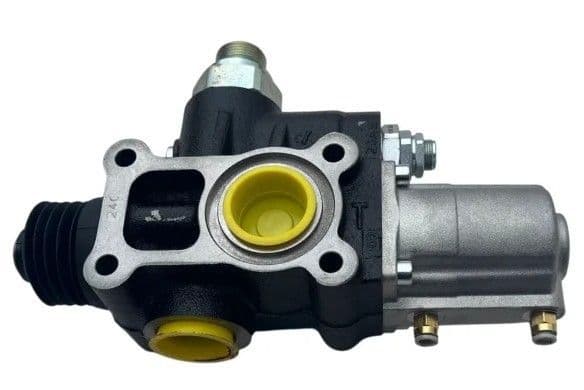

Name: Hydraulic Tipper Valve 150 L/M - 9041890/3 - BZDP150
SKU: 9041890/3
Price: 398.00 GBP
Availability: InStock

Hydraulic Tipper Valve 150 L/M – 9041890/3 – BZDP150

£398.00£331.67 Inc VATExcl VAT

Excl. VAT

Incl. VAT

Hydraulic Tipper Valve 150 L/M – 9041890/3 – BZDP150

PLEASE NOTE – *Installer to set PRV on installation*

SKU: 9041890/3 Category: Bezares

Product Description: Hydraulic Tipper Valve 150 L/M – 9041890/3 – BZDP150

Hydraulic Tipper Valve 150 L/M – 9041890/3 – BZDP150

150 LPM, Litres Per Minute Proportional Open Circuit Tipping Valve. Pneumatically Operated.

PLEASE NOTE – *Installer to set PRV on installation*

NR. 9041890/3

Max Flow: 150 L/Min.
Max: 350 Bar Working Pressure.

150 LPM, Litres Per Minute Proportional Open Circuit Tipping Valve.
Pneumatically Operated.

350 Bar Max. Relief.
“P” Port 3/4″ BSP (Input/Pump).
“C” Port 1″ BSP (Cylinder).
“T” Port 1″ BSP. (Tank/Return).

Pneumatic Port = 1/8″ BSP.
