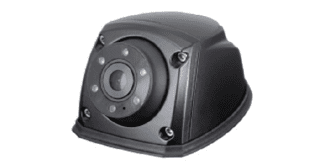

Durite Side Scan Camera

Product Description: Durite Side Scan Camera

Durite Side Scan Camera Compatible with Brigade Side scan

Product Type……………………………Side Mount Camera with Microphone
Image Sensor………………………….1/3 inch CMOS
Resolution (TV line)……………….. 500 TV line
Effective Pixels……………………….NTSC/PAL728(H) x 488(V)
View Angle……………………………..140°
TV System………………………………PAL or NTSC for option
Waterproof rating……………………IP69K
Image Lens…………………………….1.7mm
Min illumination…………………….0.1 Lux
Electronic Shutter…………………. 1/50 Sec -1/10000 seconds PAL. 1/60 Sec NTSC
Current consumption……………..Max.55mA (120mA with IR on)
Video output………………………….1.0vp-p, 75ohm
Power voltage………………………..DC 12V
S/N Ratio……………………………….Better than 48db( AGC-OFF)
Connector type………………………4 PIN aviation
Audio…………………………………….Yes
Operating Temp……………………..-20°C~70°C,RH95% MAX
Storage Temp…………………………-30°C~80°C,RH95% MAX
Certificates……………………………..E Marked

0-776-33 ECE R10(1) 0-776-33 LEAF (3)
