DURITE R65 R10 1FT LED 1-BOLT LIGHT BAR AMBER – 12/24V

Product Description: DURITE R65 R10 1FT LED 1-BOLT LIGHT BAR AMBER – 12/24V

DURITE R65 R10 1FT LED 1-BOLT LIGHT BAR AMBER – 12/24V

Durite LED Beacon Light Bar, Single Bolt, Amber, 12/24v, c/w 4m cable with switch.10 Flash Patterns. 20 x 3W LED’s. IP65. E
Marked R65, R10.05 EMC.
Additional Information:
BROWN = +VE
BLU= -VE
YELLOW/GREEN = Flash Pattern Select
Flash Patterns:
1.Rotating (CW/CCW). 2 Burst,Fade In-Out/Solid,Fade In-Out. 3. Random 4.Burst, Alternating (Side to Side)
5. Burst, Alternating, Diagonal (Front to Back) 6. Burst, Dual Rotating (CW) 7. Burst Hold/Burst Side to Side
8.Burst Hold/Single Hold.9. Burst, Single Rotating (CW). 10. Burst, Single Rotating (CCW)

Technical Information

Type LED Light Bar – Single Bolt Base
Colour Amber
Voltage 12/24V
Current 1.8A at 12VDC
Number of LED’s 20
LED Power 3W
Lens Clear Polycarbonate
Housing ABS
Weight 1.550Kg

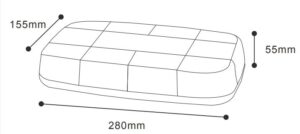

Dimensions Please see diagram below
IP Rating IP65
Flash Patterns 10
Operating Temperature -30°C to +50°C
Compliance E Marked ECE R65, ECE R10.05 EM

0-443-01-SPEC-5
