Durite 12/24v 7″ Colour reversing/CCTV Camera Kit System.

Product Description: Durite 12/24v 7″ Colour reversing/CCTV Camera Kit System.

Durite 12/24v 7″ Colour reversing/CCTV Camera Kit System.

This colour, mirror image camera kit allows drivers to reverse more safely by improving visibility and reducing blind spots.

The Sony CCD camera and 7″ TFT LCD screen provide superior night and day vision. While the 20m shielded cable, IP68 rated camera and remote control operation makwe it perfect for a wide variety of applications including van, truck, plant, construction and bus.

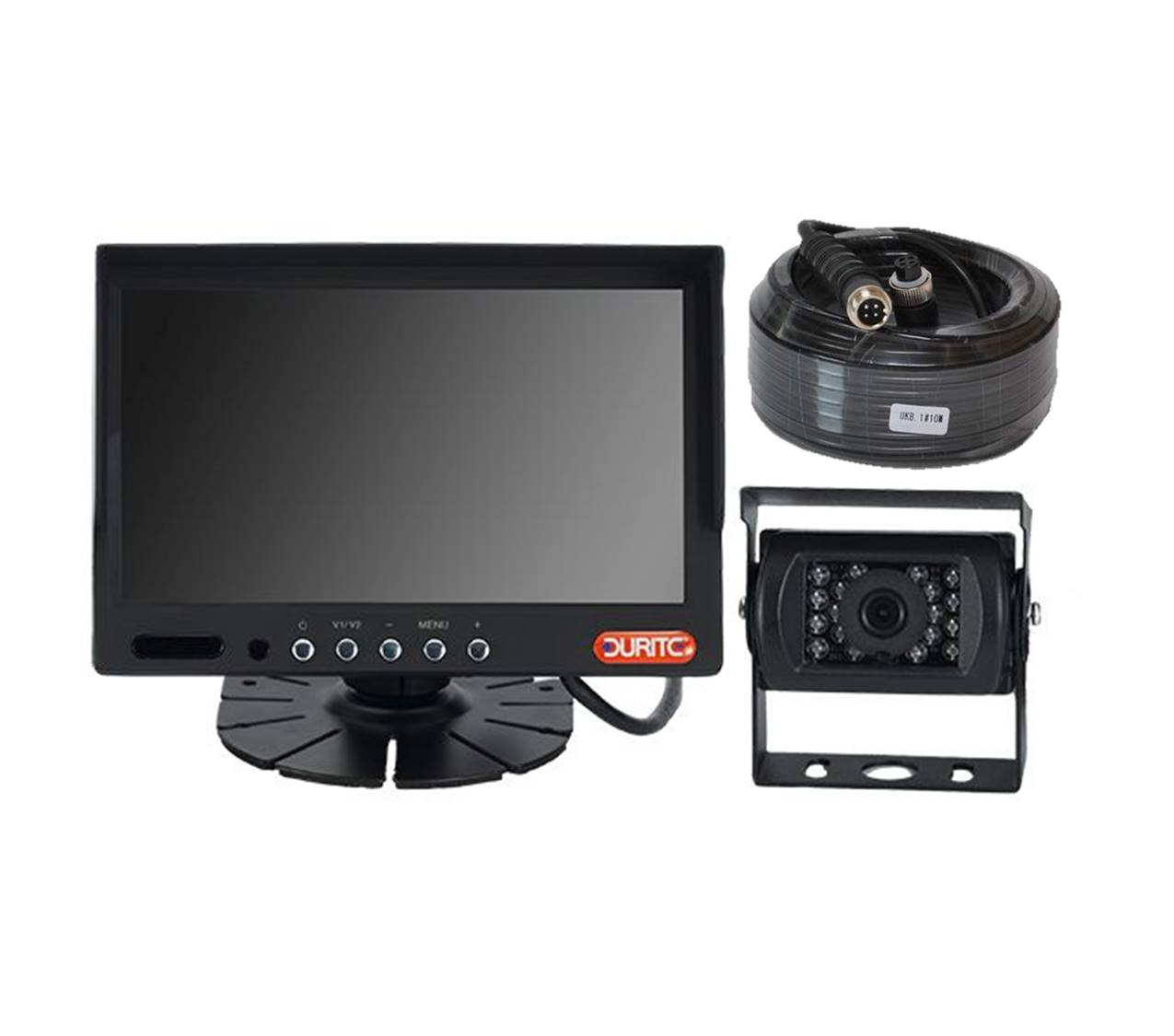

Kit includes
•1/3″ Sony CCD camera.
•7″ TFT LCD screen.
•Adjustable camera and monitor brackets.
•Remote control.
•20m shielded cable.
•2500mm connection cable with 4 pin aviation connectors and leads.
•Screws, washers and rubber mounting gasket.
•Instructions.

Monitor specifications
•12/24V DC.
•Colour TFT LCD screen.
•7 inches.
•Mirror imaging.
•Digital TTL interface.
•Resolution – 800 x RGB x 480. 500 luminance (NITS).
•PAL/NTSC (auto) system.
•Contrast ratio 500:1.
•Power consumption – 5W.
•View angle L 60°, R 60°, U 40°, D 60°.
•4 pin aviation connect plug.
•Operating temperature range -20°C – +70°C.
•Weight – 320g.
•Overall dimensions – 22mm (depth) x 172mm (width) x 115mm (height).
•E approved.

Camera specifications
•1/3″ Sony CCD.
•12V DC.
•Sensitivity – 0 LUX with IR on.
•48dB S/N ratio.
•200mA current draw.
•Auto electronic shutter.
•f2.8mm lens.
•1 Vpp 75Ohm video output.
•Auto gain control.
•Microphone.
•IP68 rated.
•Operating temperature range -20°C – +70°C.
•Weight – 360g.
•750mm cable with 4 pin aviation connector.
•Overall dimensions – 84mm (depth) x 76mm (width) x 70mm (height).
•E approved.

1 year warranty.
