DB201691 – Dixon Bate 5T universal coupling with 32mm Pin

Product Description: DB201691 – Dixon Bate 5T universal coupling with 32mm Pin

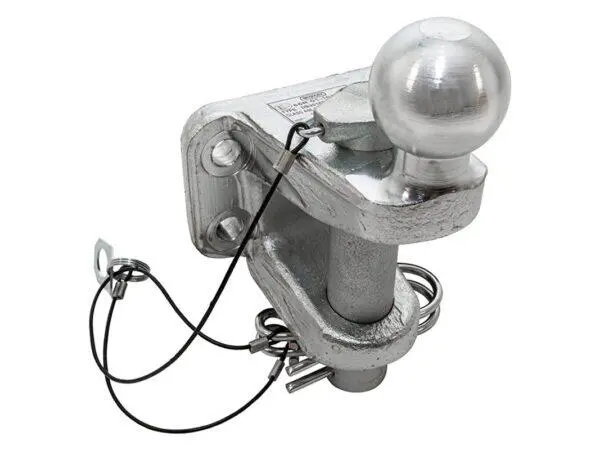

Dixon Bate 5T universal coupling with 32mm Pin

SKU: DB201691

4 Bolt fixing Heavy duty Universal towing jaw with 32mm pin and 50mm dia ball.

Ball Capacity D = 17.5kN S = 250 Pin capacity D = 20.66kN S = 250kg

• 50mm Ball – 32mm (nominal) dia forged pin
• Jaw Towing Capacity D = 20.66kN, S = 250kg
• Ball Towing Capacity D = 17.5kN, S = 250kg
• 4 bolt fixing to BS Au 24
• Towing eyes: Minimum I.D. 50mm
• Maximum Section 28.6mm
• Stabiliser Compatible Option (e.g. ALKO)
• Unique Product combining Ball & Pin Coupling
• Industry Proven – The Professional’s Choice
• Zinc and Clear Passivate Finish
• Class: A50-X/S
