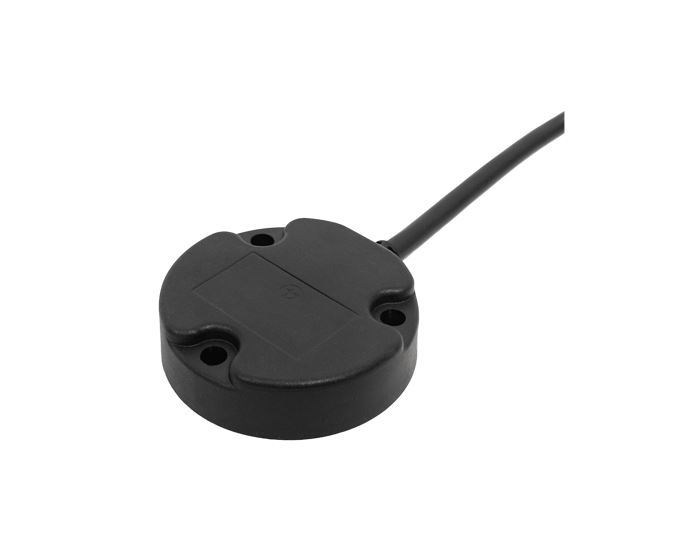

COBO 360° ROTARY ANGLE SENSOR + GAUGE OMB-BUSI

Product Description: COBO 360° ROTARY ANGLE SENSOR + GAUGE OMB-BUSI

Telemecanique Coded magnetic switch, NO, staggered, M12 0.15m OMB-BUSI

Nr. FTR2-AN-S1 / 1110015

As fitted on OMB/BUSI food waste vehicles,

Default Parameters:
360° full scale
0.5-4.5V or CANopen 406 profile
ID node No.1: 0x1F
ID node No.2: 0x1E (Redundant only)
Baud rate 125kbps (CANbus only)

Technical data

Measurement Range Settable, up to 360°
Supply voltage +5Vdc; +9 …+36Vdc
Output signal CANbus, 0.5…4.5Vdc, 4…20 mA, 0…10Vdc*
Resolution up to 14 bit
Independent linearity ±0.3% FS typ
Working temperature -40°C … +85°C
Thermal drift <50ppm/°C
Vibrations 20g between 10 Hz … 2000 Hz IEC 60068-2-6.
Shock Pulse on 3 axes; 50g 11 ms IEC 60068-2-27.
Electromagnetic compatibility 2014/30/EU Electromagnetic Compatibility (EMC).
Protections and immunity Protected against reverse polarity and short circuit
IP Protection Level IP66, IP68 and IP69K
Housing body Plastic
