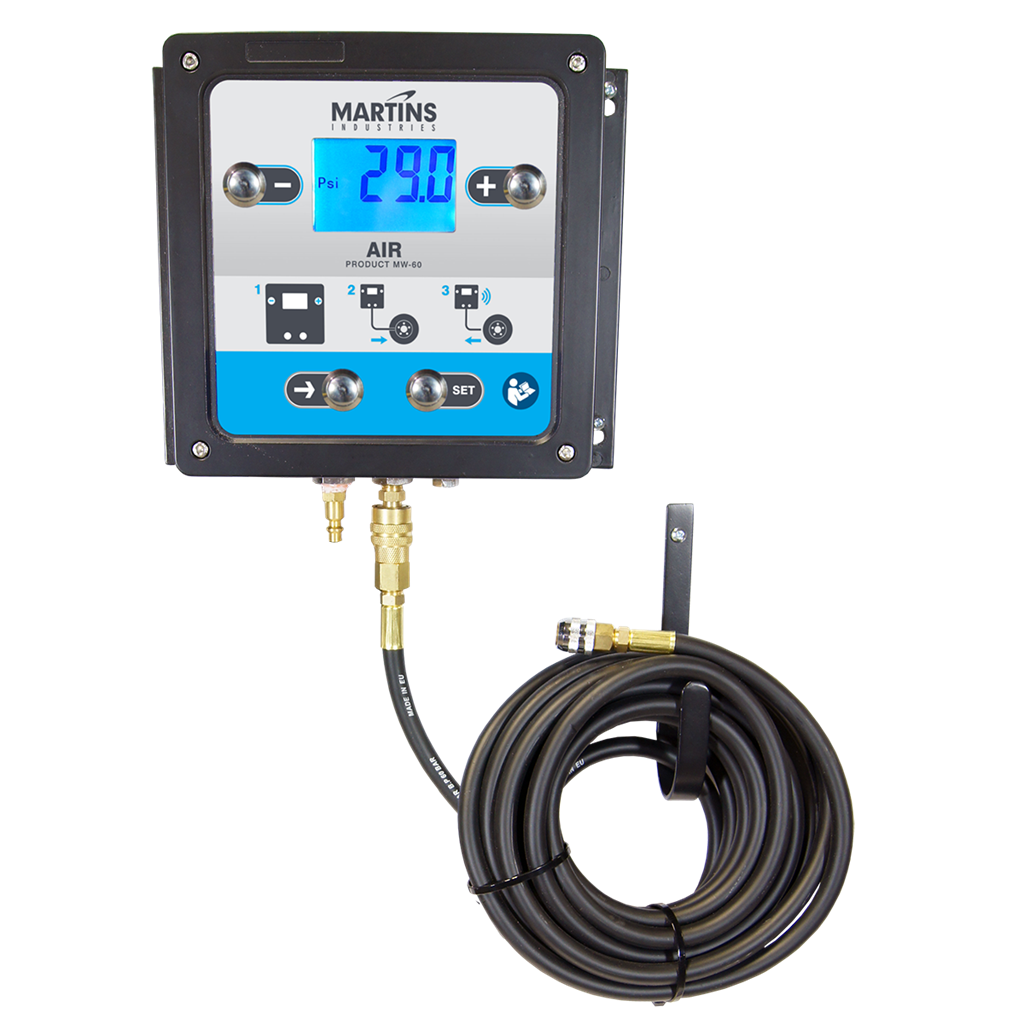

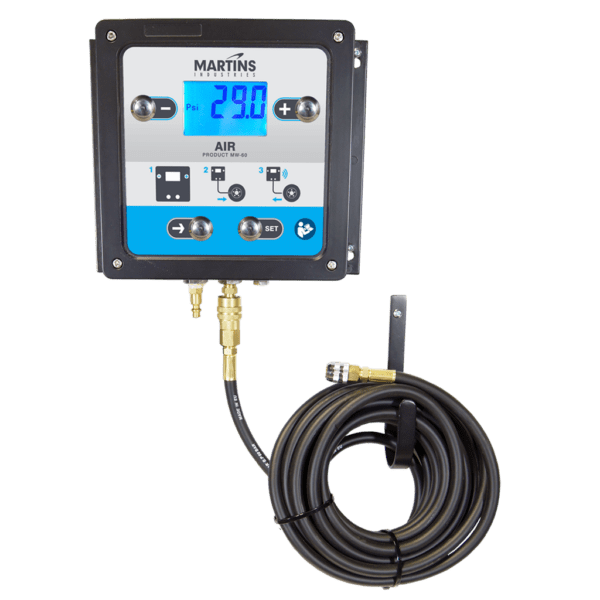

The Flatematic Single is a single outlet automatic tyre inflator that will automatically start inflation or deflation once it is connected to the tyre valve to precisely reach the selected pressure. Its clip-on chuck makes tyre inflation more productive by allowing you to work away from the tyre.
*Air compressor required
Important: compressed air contains water and oil, use proper air filter between the source and device. Failure to do so will void the warranty.
Included
7.6 m air hose with 1/4” NPT open chuck
Quick coupling 1/4” industrial
Air hose support hook
M6x38 screws (5x)
User manual
Features
Fixed

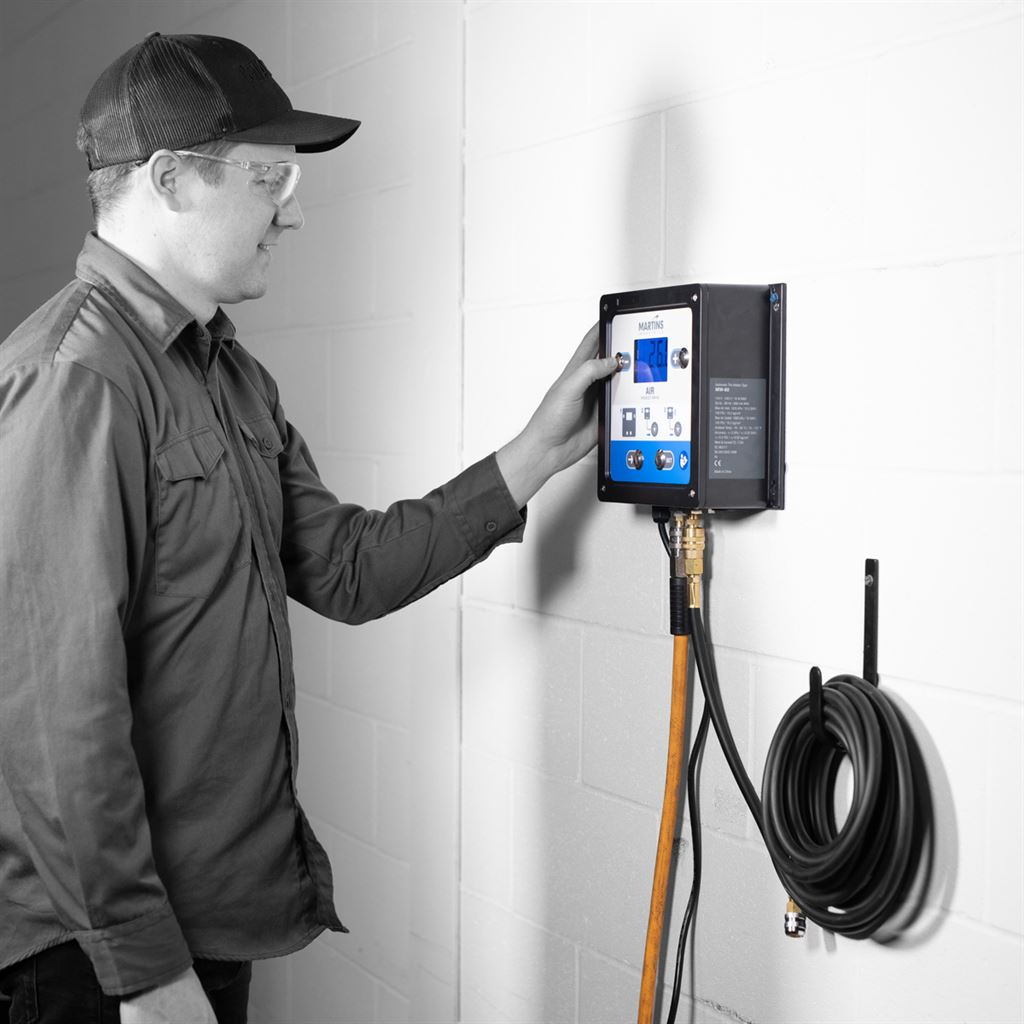

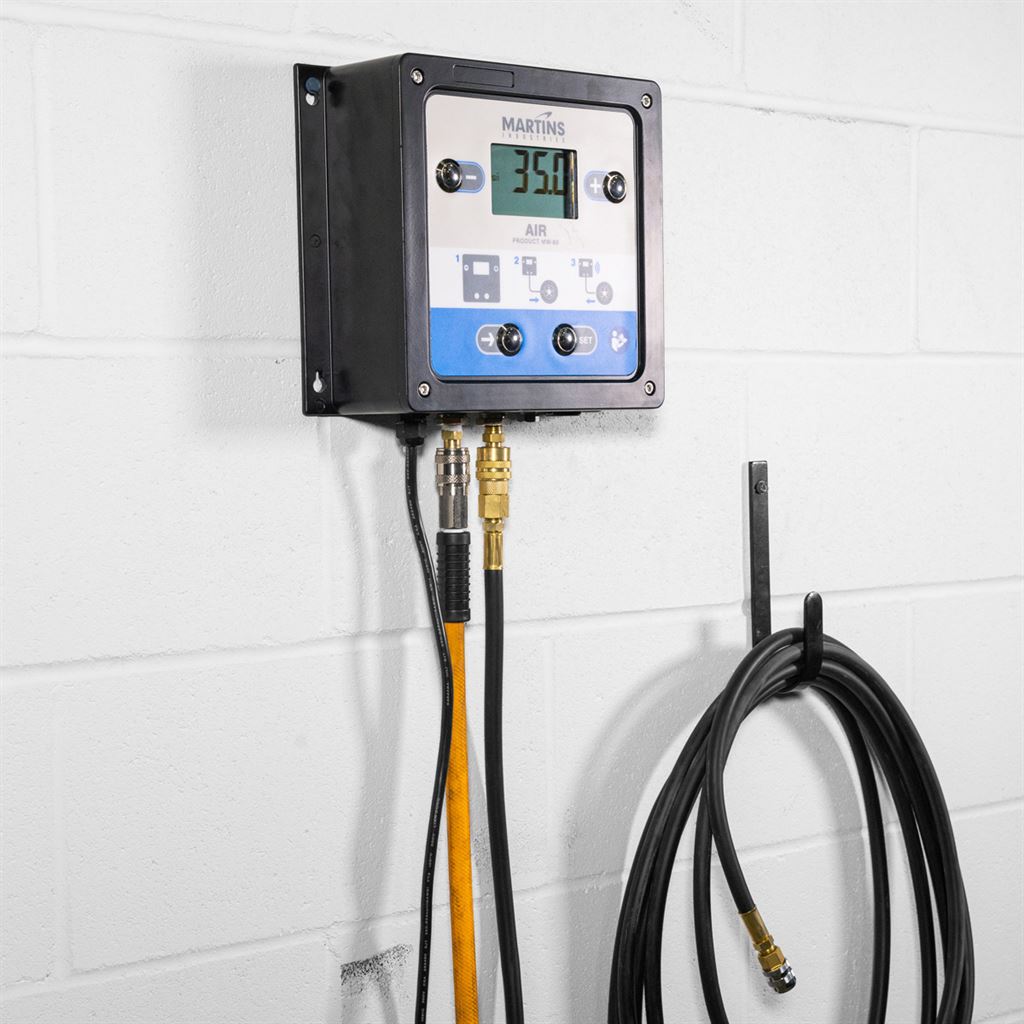

Wall-mounted
Over pressure setting (OPS)
Nitrogen compatible (n2)
Materials
Aluminium
Colour
Black and blue
Air compressor required
Yes
Air pressure – max. outlet (bar)
10
Air pressure – max. inlet (bar)
10.2
Reading accuracy (bar)
0.02
Airflow – max. (l/min)
2600
Airflow – max. (CFM)
92
Hose quantity
1
Hose length (cm)
760
Chuck type
Open
Certifications
CE
Calibration certified
Yes
Autocalibration
Yes, on every unit start
Maintenance & calibration service
Yes
Degree of protection
IP66
Supply voltage
110
Product dimensions – LxWxH (cm)
20 x 27 x 9
Net weight (kg)
6
Package dimensions – LxWxH (cm)
31 x 31 x 23
Gross weight (kg)
7
Warranty
1 year
