Brigade (FULL) Sidescan Sensor System, (12-24v)

Product Description: Brigade (FULL) Sidescan Sensor System, (12-24v)

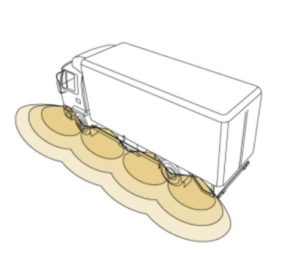

Brigade (FULL) Side-scan Sensor System, Mute Function with Speed Switch & Turn Indicator Trigger (12-24v) & Backchat Alarm.
Kit Includes:

• SS-4000W Side-scan sensor system

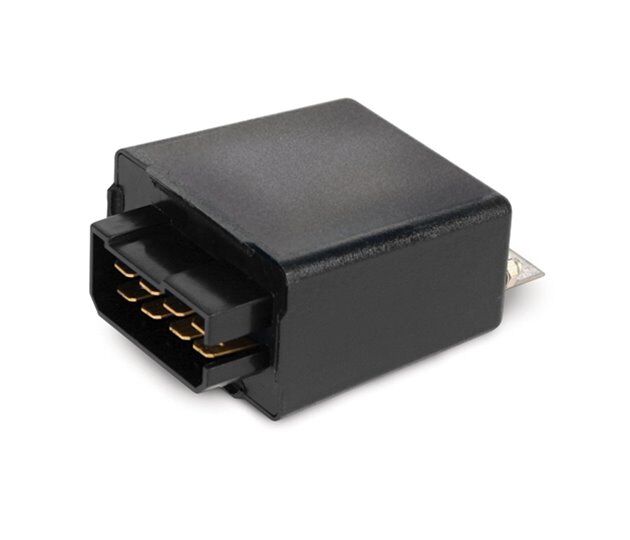

• Digital speed trigger module

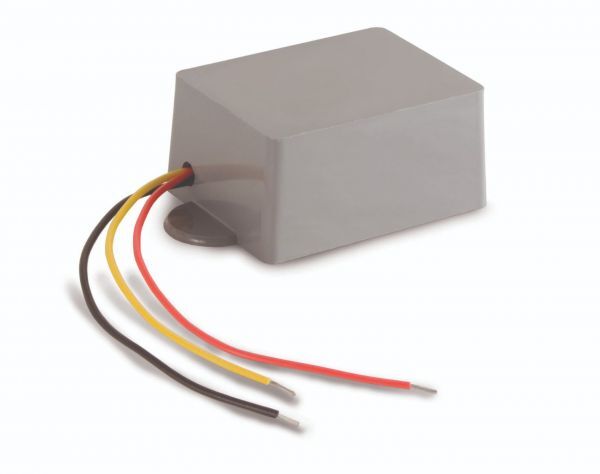

• Turn indicator sensor

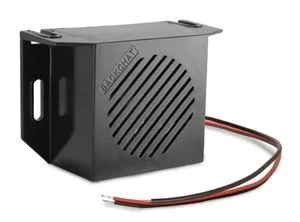

• Backchat alarm
Four sensor system , 12-24 Volts , 1.0/1.5m detection range , (selectable via dip switch), Audible distance warning, Underslung and flush-mount fixings included 2 levels of sensitivity -(selectable via dip switch) • 2 year warranty

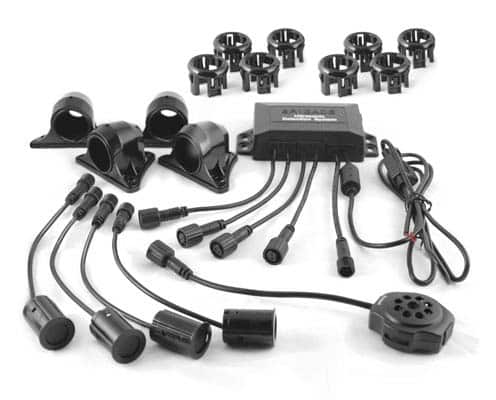

Contents

• SS-4100W Side-scan sensor system

• Digital speed trigger module

• Turn indicator sensor

• Backchat alarm

• 4 x sensors
• Buzzer
• 4 x 0° flush mount fixings
• 4 x 11° flush mount fixings
• 4 x underslung fixings
• Waterproof control box
•10m buzzer cable
• 4 x 4.5m sensor cables
• 2 x 2.5m extension cables

Features

• Obstacles detected in under 200 milliseconds
• Environment Learning Mode prevents false alarms from ancillary
equipment that intrudes in the first 100cm of the detection zone
• Self-diagnostic function

Durability & Standards

• Operating temperature: -40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to IP69K
• CE marked
