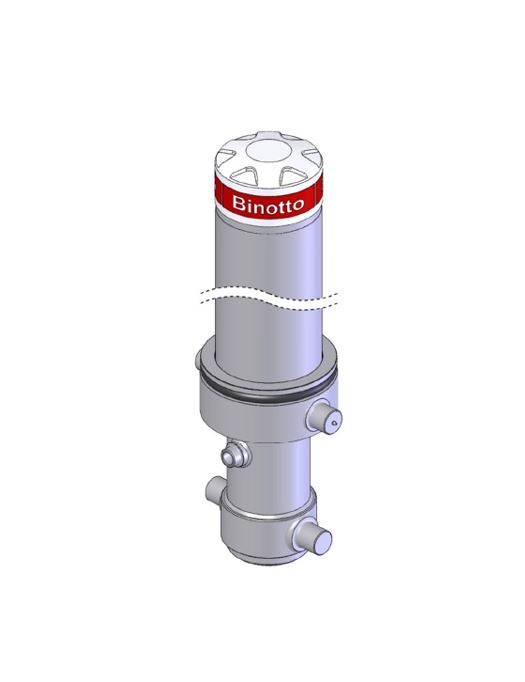

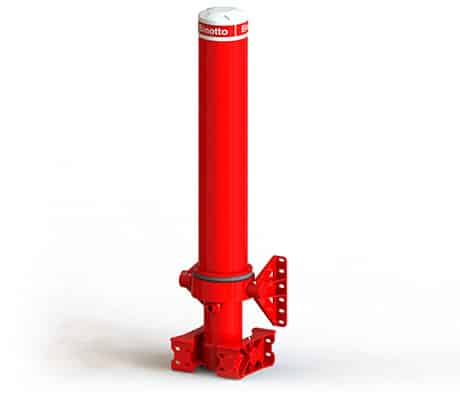

BINOTTO SINGLE ACTING FRONT END CYLINDER WITH OUTER COVER MFC 145-4-5110

Product Description: BINOTTO SINGLE ACTING FRONT END CYLINDER WITH OUTER COVER MFC 145-4-5110

BINOTTO SINGLE ACTING FRONT END CYLINDER WITH OUTER COVER MFC 145-4-5110

• Inc Upper Body Brackets

TECHNICAL SPECIFICATIONS.

• Working Volume [lts] 56,3
• Max. Working Pressure [bar] 200
• Weight (cylinder + brackets) [kgs] 290
• Max. load (at first stage) [kN] 304
• Max. extension speed [m/s] with ESV** Less than 0,24***
• Max. extension speed [m/s] w/o ESV** Less than 0,18***
• *Including 20 mm pull-out. **ESV= End of Stroke Valve.
• Stage n° 1 2 3 4 Total Stroke
• Ø Stage [mm] Ø145 Ø126 Ø107 Ø088
• Stroke [mm] 1277 1277 1277 1277 5108
• Thrust at 200 Bar [kN] 323,8 244,5 176,3 119,3

MFC B3 145.4.5110
