Binotto Pneumatic Tipping Valve Modular FP80/180 Bar To Suit:

Product Description: Binotto Pneumatic Tipping Valve Modular FP80/180 Bar To Suit:

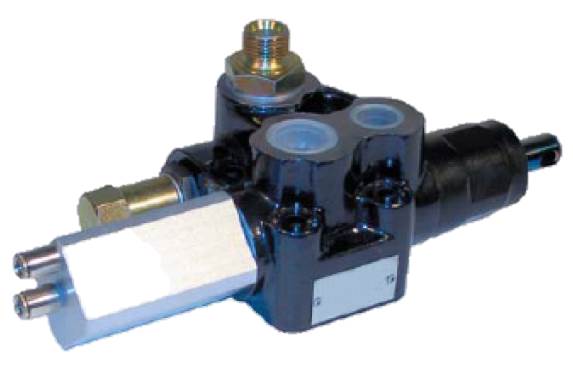

Binotto Pneumatic Tipping Valve Modular FP80/180 Bar
Pneumatic proportional tipping valve to suit medium-light duty tipper trucks, operated by pneumatic switch series LAM (fast and slow lowering) or by proportional cab controls ( proportional lowering). Open centre hydraulic scheme according to CE standards

• Built in check and adjustable safety valves (Direct Type)
• Nodular cast iron body for pressure up to 400 bar
• Mechanical direct end-of-stroke with anti-shock spring
• Ready for pressure signal switch mounting
• Cataphoresis coated body and nickel spool
• Compact Size
• Guaranteed for oil temperature range-25÷80°C.
• Viscosity range 12÷100 cSt and oil filtering 25µm

To Suit:

• TFC/MFC 75
• TFC/MFC 107
