Name: Bezares Pto rear ZF small (1:1.32) -109903/2
SKU: 109903/2
Price: 558 GBP
Availability: InStock

Product Description: Bezares Pto rear ZF small (1:1.32) -109903/2

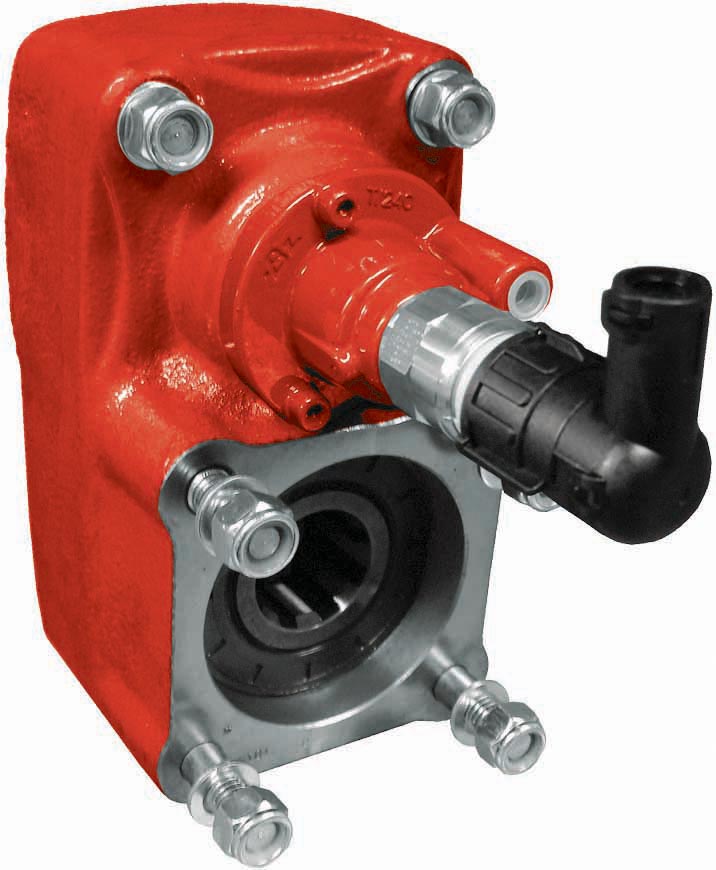

Bezares Pto rear ZF small (1:1.32) 109903/2

Power Take-off two gears, internal ratio 1:1,32, to connect Iso 4 bolts pumps. Pneumatic shifting, mounting on rear 4 bolts-window of the Gearbox. Optional: Passing contact switch.

ontinuous Torque (Nm)

300

Intermittent Torque (Nm)

420

Power (1000 r.p.m.)

42 C.V // 32 kW

Mounting Position

Rear

Pump rotation

Clockwise

Weight (Kg)

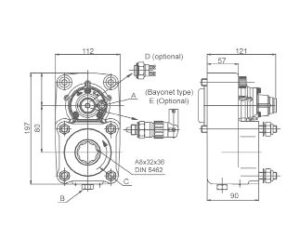

Note A

Air connection, thread 1/8” BSP

Note B

Oil drain plug

Note C

Rotation

Note D

Pressure switch. P/N 100070018

Note E

Passing contact switch. P/N 9024999

Gearbox

6S-850/6.72-0.79, 6S-850/8.51-1.0, S6-36-6.06, S6-36-6.93-0.8, S6-36-7.43-0.85+GV36, S6-36-7.43-1.0, S6-36-8.97-0.83+GV36, S6-36-8.97-1.0, 6AS-700/6.02-0.79, 6S-700/6.02-0.79
