£192.00 Inc VAT

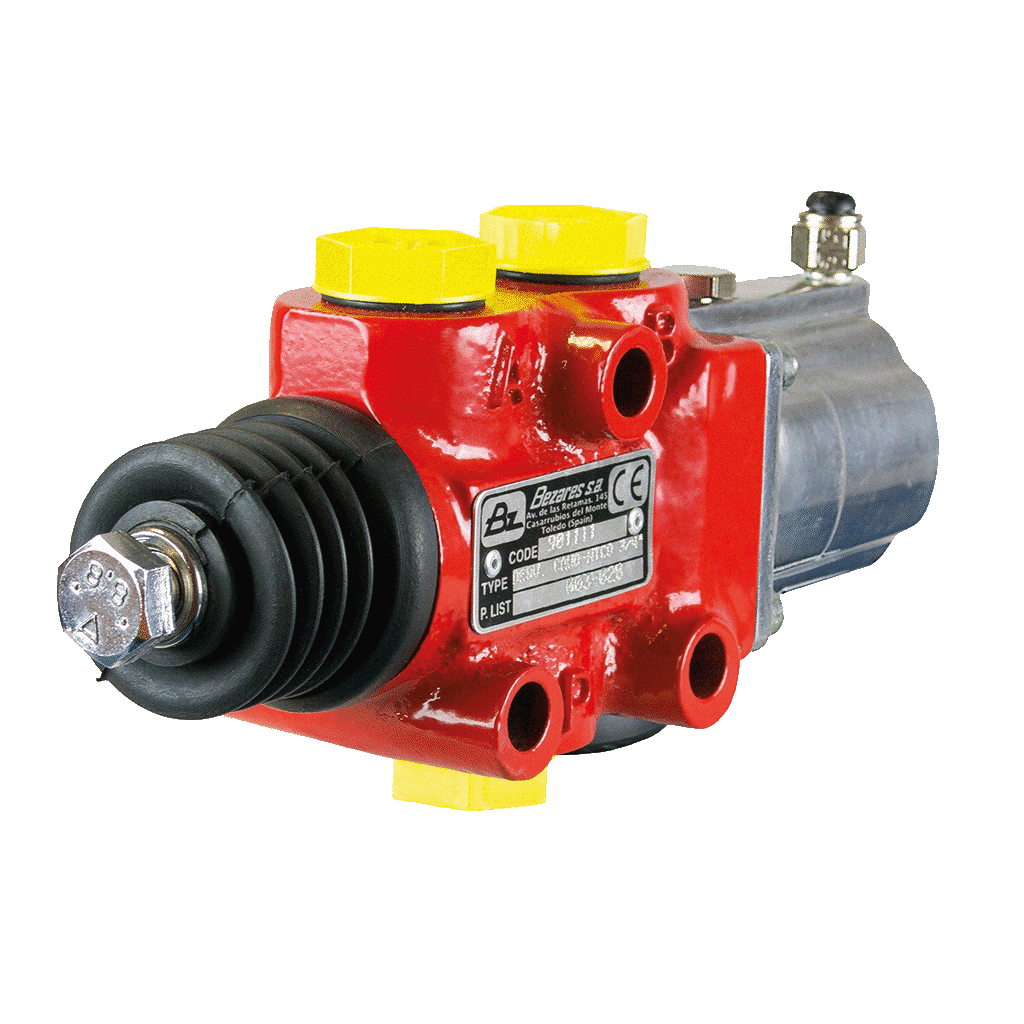

Circuit selector valve with pneumatic shifting to operate from the cabin of the vehicle.
Circuit selector valve with pneumatic shifting to operate from the cabin of the vehicle.
| WEIGHT | N/A |
|---|---|
| DIMENSIONS | N/A |
| THREAD | 1″ GAS, |
| MAXIMUM PRESSURE | 350 Bar |
| MAXIMUM PRESSURE TO WORKING SLIDE | 250 Bar |
| MAXIMUM FLOW | 200 L/min (1″ GAS), |
| AIR PRESSURE | 7-10 Bar |

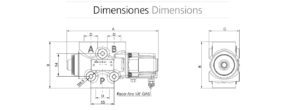

| DIMENSIONS (MM.) A | 217 (1″ GAS), |
| DIMENSIONS (MM.) B | 110 (1″ GAS), |
| DIMENSIONS (MM.) C | 72 (1″ GAS), |
| DIMENSIONS (MM.) D | Thread |
